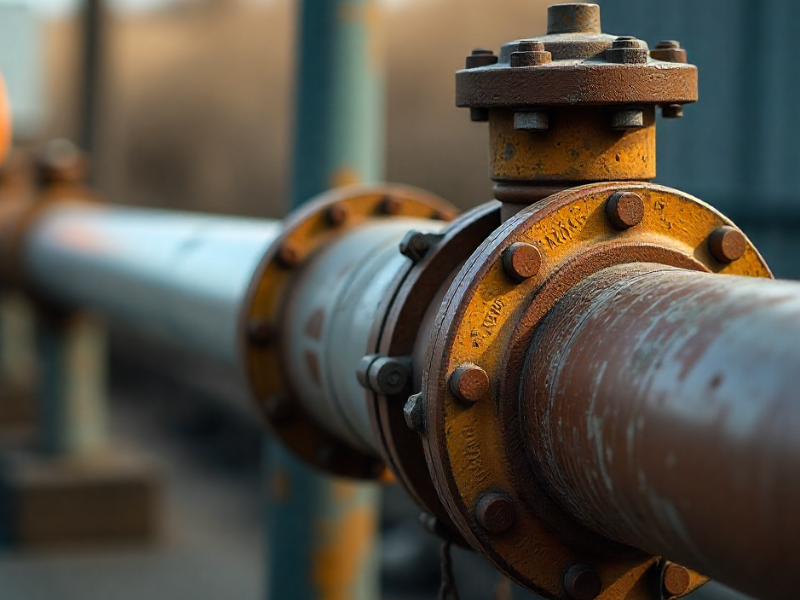

In industrial piping systems,quick-opening blind flanges (QOBs)are critical for fast access, safety, and efficiency. Therefore,knowing how to identify and fix common quick-opening blind flange failures is essential to minimize downtime and avoid costly repairs. This article breaks down the most frequent QOB issues, their root causes, and step-by-step solutions, helping you answer how to resolve quick-opening blind problems in industrial applications effectively.
Leaks between the QOB’s blind discand the pipeline flange are the most prevalent issue, often caused by poor sealing contact or damaged gaskets. Left unaddressed, these leaks can lead to fluid loss, environmental hazards (for toxic or flammable media), or reduced system pressure.
Worn or damaged gaskets: Gaskets (made of rubber, PTFE, or metal) degrade over time from pressure, temperature cycles, or chemical exposure—creating gaps for fluid to escape.
Uneven clamping pressure: The QOB’s latching mechanism (e.g., cam locks, toggle clamps) may be misadjusted, applying more pressure to one side of the disc than the other.
Debris on the sealing surface: Rust, scale, or foreign particles (e.g., sediment in water lines) get trapped between the disc and flange, preventing a tight seal.
Warped blind disc or flange: Extreme temperatures or physical impact can bend the QOB’s disc or the pipeline flange, breaking the seal.
(1)Depressurize and isolate the system: Always shut off fluid flow and vent the pipeline to 0 psi before working on the QOB—never attempt to fix a leak under pressure.
(2)Inspect the gasket: Remove the QOB’s disc and check the gasket for cracks, tears, or hardening. Replace it with a new gasket that matches the original material.
(3)Clean the sealing surfaces: Use a wire brush or solvent to remove debris, rust, or old gasket residue from both the QOB disc and the pipeline flange. Ensure surfaces are smooth and dry.
(4)Adjust the latching mechanism: For cam or toggle clamps, tighten loose bolts or adjust the clamp’s tension to ensure even pressure across the disc. For threaded locks, ensure the central thread is aligned and tightened to the manufacturer’s torque specification.
(5)Retest for leaks: Reinstall the QOB, repressurize the system, and apply a soapy water solution to the sealing surface. If no bubbles form, the leak is fixed; if bubbles persist, check for warping (use a straightedge to verify disc/flange flatness) and replace damaged components if needed.
A stuck latching mechanism (e.g., jammed cam locks, frozen toggle clamps) prevents technicians from accessing the pipeline, halting maintenance or inspection tasks. This failure is often caused by corrosion, lack of lubrication, or debris buildup in the mechanism.
Corrosion: Moisture or corrosive fluids (e.g., saltwater in offshore systems) cause rust on metal latching parts, binding the mechanism.
Dry or contaminated lubrication: The mechanism’s moving parts (e.g., cam shafts, toggle pins) lack proper lubrication, or old lubricant has mixed with dirt—creating friction that stops movement.
Debris jamming: Sediment, scale, or small objects (e.g., metal shavings from pipe repairs) get trapped in the latching slots, blocking rotation or movement.
Bent or damaged components: Physical force (e.g., using a cheater bar to force the handle) bends the cam, toggle, or handle—preventing smooth operation.
(1)Release pressure (critical!): Confirm the pipeline is fully depressurized and vented—stuck mechanisms may be under tension from residual pressure.
(2)Inspect for visible debris: Use a flashlight to check the latching mechanism for dirt, rust, or foreign objects. Remove loose debris with a soft brush or compressed air (keep pressure low to avoid pushing debris deeper).
(3)Lubricate the mechanism: Apply a valve-specific lubricant (compatible with the QOB’s material and the system’s fluid) to all moving parts. For corroded parts, use a penetrating oil (e.g., WD-40) to loosen rust, wait 10–15 minutes, then gently work the handle back and forth to free the mechanism.
(4)Check for bent components: If lubrication doesn’t work, inspect the cam, toggle, or handle for bending. Use a wrench (with caution) to straighten minor bends; replace severely damaged parts (never force a bent mechanism—it will break).
(5)Prevent future jamming: After fixing the issue, schedule monthly lubrication of the latching mechanism and add a protective coating (e.g., anti-rust spray for outdoor QOBs) to reduce corrosion.
Safety interlocks (pressure-activated pins, mechanical locks) are designed to prevent opening the QOB while the pipeline is pressurized—a critical feature for hazardous fluids. A malfunctioning interlock (e.g., interlock won’t release when depressurized, or it releases under pressure) creates severe safety risks, including fluid spills or explosions.
Clogged pressure sensor: For pressure-activated interlocks, the sensor port (which detects pipeline pressure) becomes blocked by debris or fluid residue—preventing it from registering 0 psi.
Worn interlock pins or springs: Mechanical interlocks use pins or springs that wear out over time, failing to engage (allowing accidental opening) or disengage (trapping the QOB closed).
Misadjusted interlock settings: The interlock’s pressure threshold (e.g., set to release at 5 psi instead of 0 psi) is incorrectly calibrated, causing it to malfunction.
Damage from impact: Physical damage (e.g., a tool hitting the interlock) breaks the sensor or bends the pin—disabling the safety feature.
(1)Verify pipeline pressure: Use a separate pressure gauge (not the QOB’s built-in indicator) to confirm the pipeline is at 0 psi—never trust a malfunctioning interlock’s reading.
(2)Clean the pressure sensor (for pressure-activated interlocks): Remove the sensor cover and use a small wire or compressed air to clear debris from the sensor port. Reattach the cover and test if the interlock releases.
(3)Inspect and replace worn parts: For mechanical interlocks, disassemble the interlock (per manufacturer instructions) and check for worn pins, broken springs, or bent components. Replace damaged parts with OEM (original equipment manufacturer) replacements—generic parts may not fit properly.
(4)Recalibrate the interlock: Use a calibration tool to reset the interlock’s pressure threshold to match the manufacturer’s specifications (e.g., release only when pressure is ≤ 0.5 psi). Document the calibration date for future reference.
(5)Test the interlock: After repairs, repressurize the pipeline to 10% of its maximum operating pressure and attempt to open the QOB—the interlock should block movement. Depressurize again; the interlock should release freely. Repeat this test quarterly to ensure ongoing functionality.
The QOB’s blind disc (the component that seals the pipeline) can warp from extreme temperatures, uneven pressure, or physical damage. A warped disc fails to seat properly, causing leaks and straining the latching mechanism.
Extreme temperature cycles: Rapid heating or cooling (e.g., in cryogenic LNG lines or high-temperature steam lines) causes the disc to expand and contract unevenly—leading to warping.
Uneven pressure application: Over-tightening one side of the latching mechanism or using the QOB beyond its pressure rating puts stress on the disc, bending it over time.
Physical impact: Dropping the disc during maintenance or hitting it with tools damages its flatness.
Material fatigue: Using a disc made of low-grade material (e.g., carbon steel in corrosive environments) causes it to weaken and warp prematurely.
(1)Remove and inspect the disc: Depressurize the system, remove the QOB’s disc, and place it on a flat surface. Use a straightedge to check for warping—if there’s a gap between the straightedge and the disc (more than 0.5 mm), the disc is warped.
(2)Repair or replace the disc:For minor warping (small gaps): Use a hydraulic press (with a flat die) to gently flatten the disc—follow the manufacturer’s guidelines to avoid over-pressing (which can crack the disc).
(3)Prevent future warping: Use a disc material rated for the system’s maximum temperature and pressure. Avoid over-tightening the latching mechanism, and handle the disc carefully during maintenance (use lifting straps for large discs).
While quick-opening blind flanges are durable, their performance depends on regular inspection and maintenance. By addressing common failures like leaks, stuck mechanisms, or interlock malfunctions quickly—and following preventive steps like lubrication and calibration—you can keep your QOBs operating safely and efficiently.If you are looking for high-quality and safety quick openning blind plate for your work,you can visit our website:www.bjafatech.com;And also you can consult us by banmy@bjafatech.com and +86-18611864848 if you need.
