A butterfly valve is a quarter-turn control valve widely used in industrial, municipal, and commercial systems to regulate fluid (liquid, gas, or slurry) flow. Its core component-the valve disc (a circular plate mounted on a central shaft)—controls flow by rotating within the valve body. Unlike globe valves (linear motion) or ball valves (spherical core), butterfly valves rely on the disc’s rotational position to adjust flow area, making their flow control performance directly dependent on how the disc rotates. Understanding the relationship between valve disc rotation and flow regulation is key to selecting and operatingbutterfly valves effectively in scenarios like water treatment, HVAC, and chemical processing.
The flow control mechanism of butterfly valvesrevolves around the disc’s rotation relative to the valve’s flow path:
Closed Position (0° Rotation): When the disc is fully closed (rotated 0° relative to the flow direction), it sits perpendicular to the fluid path, blocking almost all flow. The disc’s edge presses against the valve seat (rubber, PTFE, or metal) to create a seal, minimizing leakage (typically ANSI Class III–VI, depending on the seat material).
Partially Open Position (10°–80° Rotation): As the disc rotates (via a handle, gearbox, or actuator), it tilts away from the flow path, creating a gap between the disc edge and valve body. The size of this gap determines the flow area—more rotation (closer to 90°) increases the gap, allowing more fluid to pass; less rotation reduces the gap, restricting flow.
Fully Open Position (90° Rotation): At 90° rotation, the disc lies parallel to the flow direction, offering minimal resistance. The flow area is nearly equal to the valve’s internal diameter, maximizing flow rate while minimizing pressure drop (a key advantage of butterfly valves over globe valves).
The relationship between disc rotation angle and flow rate (known as the flow characteristic curve) determines how butterfly valves perform in different applications:
High-Performance Butterfly Valves (Linear Flow): Advanced designs (e.g., double-offset or triple-offset butterfly valves) feature contoured discs or modified seats that create a linear flow curve. This means flow rate increases proportionally with disc rotation—e.g., 50% rotation delivers ~50% of maximum flow. Linear flow is ideal for processes needing precise throttling (e.g., chemical dosing, HVAC temperature control), as it allows predictable adjustments.
Standard Butterfly Valves (Equal Percentage/Quick-Opening): Most standard (centric) butterfly valves have a non-linear flow curve. In the low rotation range (0°–30°), small disc movements cause large flow changes (quick-opening), while higher rotation (30°–90°) has a more gradual impact (equal percentage). This makes standard valves suitable for on/off control (e.g., pipeline isolation) but less ideal for tight throttling.
Disc rotation directly affects pressure drop (fluid resistance) and turbulence:
Low Rotation (0°–30°): The disc blocks most of the flow path, creating high pressure drop and turbulence. Fluid flows around the disc’s edge, forming vortices that can cause noise or vibration—this is why standard butterfly valves are not recommended for low-flow, high-pressure applications (e.g., high-pressure steam lines).
High Rotation (60°–90°): The disc is nearly parallel to flow, minimizing pressure drop (often 50% lower than globe valves of the same size). Turbulence is reduced, making butterfly valves efficient for large-flow systems(e.g., water treatment plant pipelines, cooling water loops in power plants).
Even in partially open positions, disc rotation influences sealing and leakage:
Seat Material Impact: For rubber-seated butterfly valves, partial rotation (10°–20°) may cause the disc edge to rub against the seat, accelerating wear and increasing leakage over time. Metal-seated valves (used in high-temperature/high-pressure systems) are more durable but have higher baseline leakage at partial rotation.

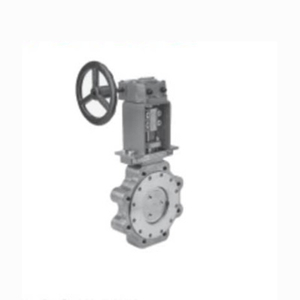

Offset Designs: Double-offset butterfly valves (disc shaft offset from the valve center and seat) reduce seat contact during rotation, minimizing wear and maintaining tight sealing even with frequent partial-opening adjustments—critical for applications like gas pipelines where leakage must be minimized.
Municipal Water Supply: Standard butterfly valves use full 0°–90° rotation to quickly open/close water mains. The quick-opening flow characteristic ensures fast system startup or shutdown, while low pressure drop (when open) reduces energy use for pumps.
Chemical Tank Isolation: Metal-seated butterfly valves rotate 90° to isolate chemical storage tanks. Their robust design handles corrosive media (e.g., acids, solvents) and ensures reliable sealing when closed.
HVAC Systems: High-performance butterfly valves with linear flow characteristics use 10°–70° rotation to adjust chilled water or hot air flow. Precise disc rotation (controlled by electric actuators) maintains room temperatures within ±1°C, optimizing energy efficiency.
Wastewater Treatment:Butterfly valves with equal-percentage flow curves use 20°–60° rotation to regulate the flow of treated wastewater into distribution networks. Partial rotation prevents sudden pressure spikes that could damage pipeline infrastructure.

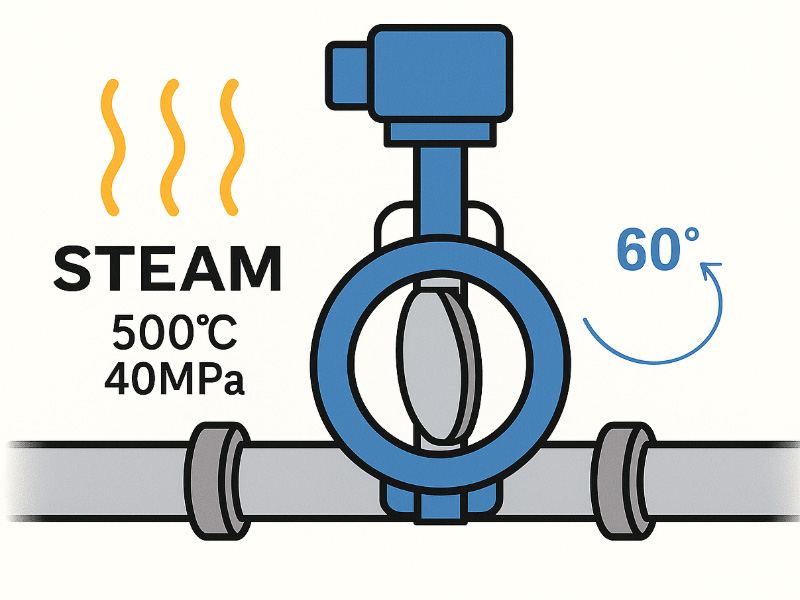

Power Plant Steam Lines: Triple-offset butterfly valves (with three disc offsets) use controlled partial rotation (30°–80°) to regulate high-temperature steam (up to 500°C) and high pressure (up to 40 MPa). Their metal seats and contoured discs minimize wear and ensure stable flow control without leakage.
Choose the Right Valve Design: Select double/triple-offset valves for precise throttling (linear flow) and standard centric valves for on/off control. Match the valve’s flow characteristic to your process needs (e.g., linear for dosing, quick-opening for isolation).
Use Actuators for Accuracy: Pneumatic or electric actuators provide precise control over disc rotation (±0.5° accuracy), far better than manual handles. For automated systems, pair actuators with positioners to sync rotation with process signals (e.g., 4–20 mA for HVAC control).
Monitor Wear and Leakage: Regularly inspect the disc edge and seat for wear, especially in valves used for frequent partial rotation. Replace worn seats or discs to maintain flow control accuracy and prevent leakage.
In summary, valve disc rotation is the core mechanism drivingbutterfly valve flow control—its angle, speed, and characteristic curve directly determine flow rate, pressure drop, and sealing performance. By understanding how disc rotation impacts these factors, you can select the right butterfly valve for your application (on/off or throttling) and optimize its operation for efficiency and reliability. Whether in municipal water systems, HVAC, or power plants, mastering disc rotation control ensures butterfly valves deliver consistent, cost-effective flow regulation.To learn more information about butterfly valves,you can browse our website:https://www.bjafatech.com.Please don't hesitate to contact us if you have any questions.Our number is +86-18611864848 and our email is banmy@bjafatech.com.
