A urea valve is a specialized control valve designed to handle urea-containing media—such as urea aqueous solutions or molten urea (used in chemical fertilizer production). Unlike standard valves, urea valves are engineered to resist corrosion from urea’s chemical properties (urea decomposes into ammonia and carbon dioxide under heat, creating alkaline conditions) and prevent clogging from urea crystallization. As a critical component in automotive emissions control, agriculture, and chemical industries, urea valves ensure precise flow regulation of urea media, supporting environmental compliance and process efficiency.
Specialized Design for Urea Media: Urea, especially in high-concentration or high-temperature forms, is corrosive to common metals (e.g., carbon steel) and prone to crystallization at temperatures below 132.7°C (molten urea) or in low-flow conditions (aqueous urea). Urea valves address these challenges with:
Corrosion-resistant materials (e.g., 316L stainless steel, Hastelloy C276) for valve bodies and trim.
Anti-crystallization structures (e.g., heated valve cores, smooth flow paths) to prevent urea from solidifying and blocking flow.
Precise Flow Control: Urea processes (e.g., SCR systems) require accurate dosing of urea—urea valves typically offer flow control accuracy of ±2% to ensure optimal performance (e.g., reducing NOx emissions in vehicles).
Corrosion Resistance: Standard valves (e.g., brass ball valves) corrode quickly when in contact with urea, leading to leaks and failure. Urea valves use acid/alkali-resistant materials to withstand urea’s chemical impact.
Anti-Crystallization: Standard valves lack heating or insulation features, making them prone to urea crystallization. Urea valves often integrate electric heaters or thermal jackets to maintain urea in a liquid state.
Application: Used in Selective Catalytic Reduction (SCR) systems of diesel vehicles to inject urea aqueous solution (AdBlue/DEF) into the exhaust stream, converting harmful NOx into nitrogen and water.
Key Features:
Small size (to fit vehicle engine compartments) and fast response (≤0.1 seconds) to match exhaust flow changes.
Integrated filters to prevent debris in AdBlue from clogging the valve.
Electric actuation (12V/24V) for precise dosing control, synced with the vehicle’s ECU (Engine Control Unit).
Application: Used in chemical plants during urea synthesis (reacting ammonia and carbon dioxide under high pressure/temperature).
Key Features:
High-pressure resistance (up to 25 MPa) and high-temperature tolerance (up to 200°C) to handle synthesis conditions.
Metal-to-metal seals (e.g., Inconel) to prevent leaks of toxic ammonia-urea mixtures.
Application: Regulate the flow of molten urea or urea solutions in fertilizer production lines (e.g., granulation processes).
Key Features:
Thermal insulation or heating jackets to keep urea molten (preventing crystallization).
Large flow paths (e.g., full-port design) to handle high-volume urea transport in fertilizer plants.

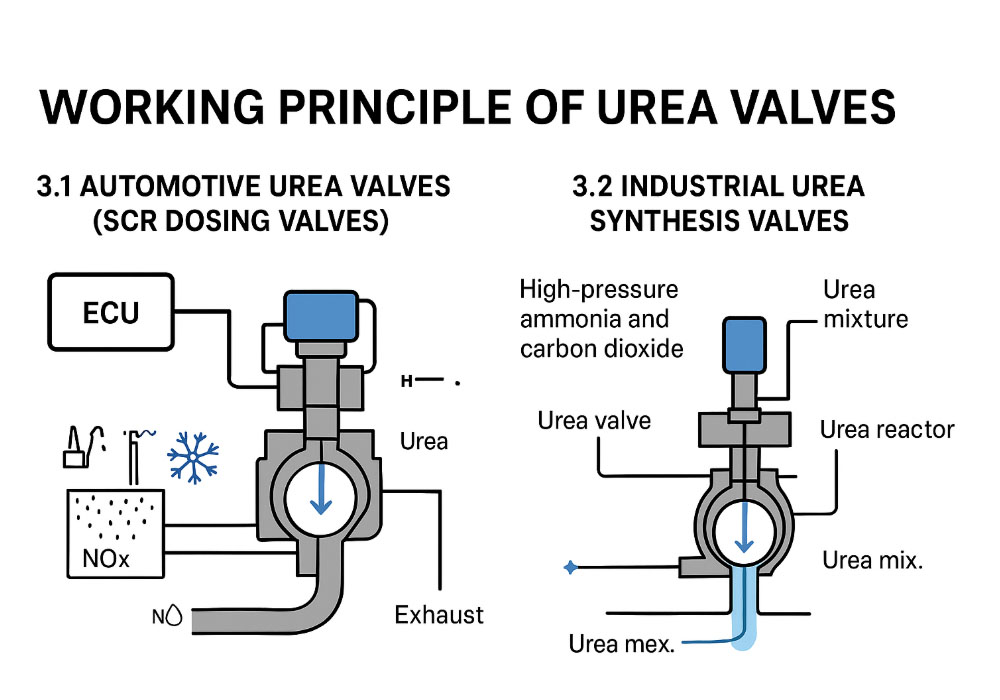

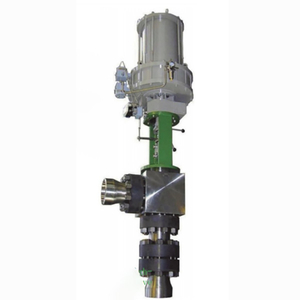

The working principle of urea valves like type C 4800 varies slightly by type, but the core goal is to regulate urea flow while resisting corrosion and crystallization:
The vehicle’s ECU detects exhaust NOx levels and sends a signal to the urea valve.
The valve’s electric actuator opens the valve core, allowing AdBlue to be injected into the exhaust system via a nozzle.
The valve adjusts the opening degree based on ECU signals (e.g., increasing flow when NOx levels rise) to ensure optimal NOx reduction.
After injection, the valve closes tightly to prevent AdBlue leakage, and a built-in heater activates (in cold weather) to keep residual AdBlue from freezing/crystallizing.
High-pressure ammonia and carbon dioxide enter the urea reactor, with the urea valve controlling the inlet flow of raw materials.
The valve’s pressure sensor monitors the reactor pressure; if pressure exceeds the set value (e.g., 22 MPa), the valve opens slightly to release excess pressure.
The valve’s corrosion-resistant trim (e.g., Hastelloy) ensures the valve doesn’t degrade from the high-pressure urea mixture, maintaining consistent flow control.
Heavy-Duty Diesel Vehicles: Trucks, buses, and construction equipment use urea valves to inject AdBlue, meeting strict emissions standards (e.g., Euro VI, EPA Tier 4). Without these valves, vehicles would fail to reduce NOx emissions, leading to regulatory penalties.
Passenger Cars: Modern diesel passenger cars also adopt SCR systems, with compact urea valves integrated into the exhaust system to balance emissions and fuel efficiency.
Urea Production Plants: Urea valves control raw material flow (ammonia, CO₂) during synthesis and regulate molten urea transport to granulation units. Their high-pressure resistance ensures safe, continuous production.

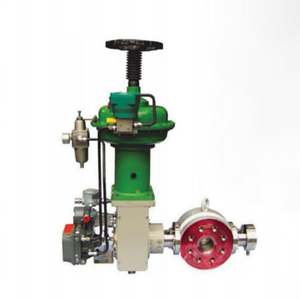

Fertilizer Distribution: In liquid fertilizer plants, urea valves,such as C-2311 adjust the concentration of urea solutions (e.g., 32% urea liquor) for agricultural use, ensuring consistent nutrient content in the final product.
Some wastewater treatment plants use urea to remove nitrogen from wastewater. Urea valves dose urea into treatment tanks at precise rates, helping break down nitrogen compounds into harmless gases—supporting compliance with environmental discharge standards.
To extend the lifespan of urea valves and ensure reliable performance:
Regular Cleaning: For automotive urea valves, clean the valve and nozzle every 10,000–15,000 km to remove AdBlue residues and prevent clogging. Use manufacturer-recommended cleaning agents (avoid harsh chemicals that damage seals).
Inspect Corrosion: For industrial urea valves, check the valve body and trim quarterly for corrosion. Replace worn parts (e.g., seals, valve cores) if signs of pitting or rust appear.
Maintain Heating Systems: Ensure the heating jackets or electric heaters of industrial urea valves are functional—especially in cold climates—to prevent urea crystallization. Test heating elements monthly for continuity.
In summary, a urea valve is a specialized control valve tailored to handle urea’s unique properties, playing a critical role in automotive emissions control, chemical production, and agriculture. By resisting corrosion, preventing crystallization, and enabling precise flow control, urea valves support efficient, compliant operations across key industries. Whether in a diesel truck's SCR system or a urea fertilizer plant, selecting and maintaining the right urea valve is essential for optimal performance and long-term reliability.If you are looking for high-performance urea valves for you factory,you can visit our website:https://www.bjafatech.com.We provide different type urea valves,such as C-4800 and C-2311.And you can consult us by +86-18611864848 or banmy@bjafatech.com at any time.
