The butterfly valve is one of the most widely used industrial valves in pipelines due to its compact design, simple operation, and cost-effectiveness. However, despite their simple structure, improper butterfly valve installation is a common cause of leakage, vibration, and premature failure. Two of the most frequent installation mistakes are related to flange connections and incorrect flow direction. This article explores these issues in detail and provides guidance on how to prevent them.
A butterfly valve is a type of quarter-turn valve that uses a circular disc or plate as its closing mechanism. When rotated 90 degrees, the disc moves from fully open to fully closed, allowing for quick shutoff or throttling control.
There are several designs of butterfly valves, including:
Wafer-type butterfly valves – compact, lightweight, and designed for use between two flanges.
Lug-type butterfly valves – equipped with threaded inserts that allow disassembly of one side of the pipeline without affecting the other.

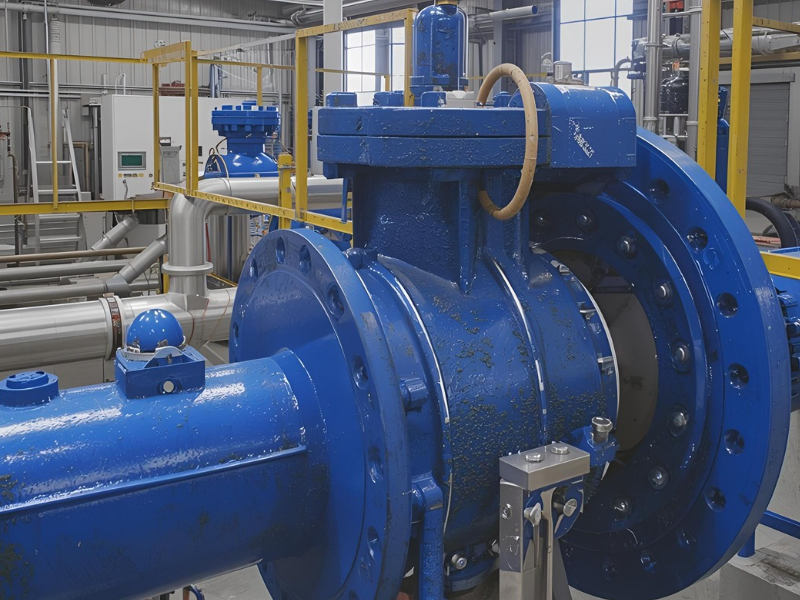

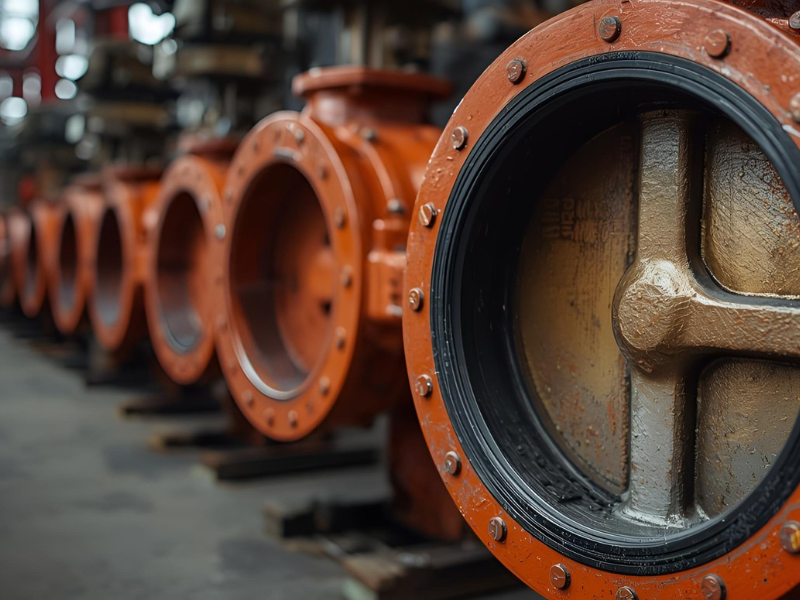

Flanged butterfly valves – feature integral flanges for easy bolted installation.
Each type has unique installation requirements, and neglecting them can lead to operational inefficiency and maintenance issues.
One of the most common mistakes during butterfly valve installation is misalignment of the flange connection. Even a slight misalignment between the valve body and the pipeline flanges can cause serious issues.
Common Problems:
Valve Disc Interference:When flanges are not properly centered, the valve disc may hit the pipe wall during operation. This not only restricts flow but also causes mechanical stress and potential damage to the disc or seat.
Leakage at the Sealing Surface:Poor flange alignment leads to uneven pressure on the valve gasket, resulting in external leaks under pressure. Over-tightening flange bolts in an attempt to stop the leak can deform the valve body or disc, worsening the problem.
Increased Torque Requirement:A misaligned flange connection forces the valve stem to operate under additional friction, increasing the required torque and reducing actuator life in automated valve systems.
Installation Tips:
Always use centering tools or flange alignment guides during assembly.
Tighten bolts in a crisscross pattern to apply even pressure on the gasket.
Ensure that gaskets are correctly seated and not obstructing the flow path.
Many technicians overlook the importance of valve flow direction when installing butterfly valves. Unlike ball valves or gate valves, which often perform the same in both directions, butterfly valves are sensitive to the direction of fluid flow—especially in high-pressure or vacuum systems.
Consequences of Incorrect Flow Direction:
Seal Damage and Leakage:Most butterfly valves are designed with a preferred flow direction indicated by an arrow on the body. If installed backward, fluid pressure may lift the disc away from the seat, causing internal leakage and early seal wear.
Reduced Control Accuracy:In control valve applications, incorrect orientation can distort flow characteristics, making it difficult to achieve stable regulation.
Increased Cavitation and Vibration:Flow turbulence increases when the valve disc faces the wrong direction, leading to cavitation, noise, and potential pipeline vibration.
Best Practices:Check the arrow marking or manufacturer’s datasheet for the correct flow direction before installation.
For unidirectional valves, always position the valve so that the seat is on the downstream side when the valve is closed.
In bi-directional butterfly valves, flow direction is less critical but alignment and gasket installation remain important.
Another frequent issue during flanged butterfly valve installation is over-tightening flange bolts. Installers sometimes believe that tighter bolts prevent leaks—but excessive torque can distort the valve body or compress the seat unevenly.
Problems Caused by Over-Tightening:
Disc Binding: The valve disc may not open fully due to body deformation.
Seal Deformation: Soft seats made of EPDM, PTFE, or NBR can be permanently damaged, reducing sealing performance.
Cracked Flange Lugs: Especially in lug-type butterfly valves, over-torquing can crack the threaded inserts or flanges.
Always follow the torque specifications provided by the manufacturer, considering the flange material, gasket type, and bolt grade.
During installation, the valve should always be slightly open to prevent the disc from being squeezed between flanges. Installing a butterfly valve in a fully closed position can trap the disc between the gaskets, causing edge deformation and damage during bolt tightening.
Recommended Practice:
Keep the valve disc partially open (around 10°–15°) during flange tightening.
After installation, fully open the valve to ensure the disc moves freely without obstruction.
Avoid inserting or removing the valve while the pipeline is under stress or pressure.
Installing a butterfly valve in a dirty or debris-filled pipeline is another overlooked issue. Foreign materials such as sand, welding slag, or metal shavings can scratch the valve seat or jam the disc, leading to leaks and operational failure.
Before installation:
Clean the pipeline thoroughly.
Perform a hydrostatic test or pressure test after installation to ensure no leakage at the flange or stem.
Improper butterfly valve installation not only causes immediate operational problems but also affects long-term performance. Misaligned or incorrectly oriented valves experience premature wear, increased torque requirements, and frequent maintenance cycles.
Over time, these issues can result in energy loss, unplanned downtime, and reduced overall pipeline efficiency. For facilities using automated control valves, even small installation errors can lead to actuator failure and process instability.
Whether you’re installing a wafer-type, lug-type, or flanged butterfly valve, correct practices ensure smoother operation, better sealing, and improved system efficiency—saving both time and cost in the long run.To learn more information about valves,you can browse our website:www.bjafatech.com.And you can contact us by banmy@bjafatech.com or +86-18611864848 directly if you need.
