Choosing the right butterfly valve material is a critical step in ensuring safety, efficiency, and longevity in fluid control systems. Different operating conditions—such as temperature, pressure, medium type, and environmental factors—require distinct valve materials to maintain performance and reliability. Using the wrong material can result in corrosion, leakage, or complete valve failure.This article provides a comprehensive guide on how to choose suitable butterfly valve materials for various industrial environments.
A butterfly valve consists of several key components: the body, disc, seat, and stem. Each can be made from different materials depending on the intended use. The body and disc materials determine the valve’s structural strength and corrosion resistance, while the seat material influences sealing performance and temperature compatibility.
Proper butterfly valve material selection ensures:
Chemical compatibility with the medium
Adequate mechanical strength under operating pressure
Resistance to temperature extremes
Cost-effectiveness and ease of maintenance
For general-purpose applications, such as water supply, wastewater treatment, and HVAC systems, the cast iron butterfly valve or ductile iron butterfly valve is a popular choice.
Advantages:
High tensile strength and good durability under moderate pressure
Excellent cost-to-performance ratio
Ideal for large-diameter pipeline installations
Limitations:
Cast iron is not suitable for corrosive fluids or high-temperature environments. In such conditions, it can rust, leading to reduced sealing performance.
Use Case Example:
A ductile iron wafer butterfly valve is widely used in cooling water circulation systems or municipal water distribution networks, where the medium is clean and non-corrosive.
When dealing with corrosive fluids, chemical media, or hygienic environments, a stainless steel butterfly valve is the ideal solution.
Advantages:
Excellent corrosion resistance against acids, alkalis, and saline water
Smooth internal surface prevents contamination buildup
Withstands high temperatures up to 400°C (depending on seat type)
Common Grades:
SS304 Butterfly Valve:Suitable for mild corrosive fluids such as low-concentration acids or food-grade liquids.
SS316 Butterfly Valve: Contains molybdenum for improved resistance to chlorides and harsh chemicals, making it suitable for seawater and chemical processing applications.
Use Case Example:
A 316 stainless steel butterfly valve is commonly used in desalination plants, pharmaceutical production, and marine pipelines where corrosion protection is essential.
In extreme chemical environments, even metal valves can degrade quickly. This is where lined butterfly valves—such as PTFE (Teflon)-lined or EPDM/NBR rubber-lined valves—provide superior protection.
PTFE-Lined Butterfly Valves:
These are designed for strong acids, alkalis, and solvents in industries like chemical manufacturing, pulp and paper, and pharmaceuticals. PTFE provides:
Excellent chemical resistance
Low friction and anti-stick properties
Operational temperature range up to 200°C
Rubber-Lined Butterfly Valves:
EPDM, NBR, and Viton linings are used for general water, air, and light chemical applications. They offer tight sealing and vibration absorption in low- to medium-pressure systems.
Use Case Example:
A PTFE-lined butterfly valve is ideal for handling hydrochloric acid or caustic soda in a chemical plant, while an EPDM-lined valve works well for cooling water or compressed air systems.

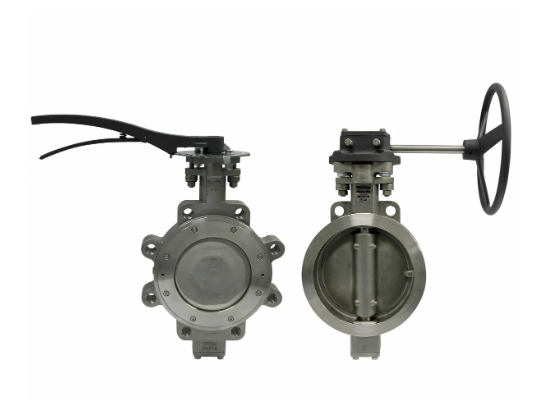

When operating under high temperature or high pressure, materials such as carbon steel or alloy steel are preferred due to their superior mechanical strength.
Carbon Steel Butterfly Valves:
Commonly used in oil and gas pipelines, power generation, and steam systems
Handles temperatures up to 425°C (depending on seat material)
Suitable for non-corrosive fluids like steam, gas, or hydrocarbons
Alloy Steel Butterfly Valves:
Enhanced strength and creep resistance at elevated temperatures
Used in high-pressure boiler feed systems, petrochemical plants, and refineries
Use Case Example:
A carbon steel flanged butterfly valve is often used in a refinery’s steam network where durability and heat resistance are critical.
For non-metallic and lightweight needs, PVC (Polyvinyl Chloride) and CPVC (Chlorinated Polyvinyl Chloride) butterfly valves are ideal for low-pressure and non-toxic media.
Advantages:
Completely corrosion-resistant in acidic or alkaline environments
Easy to install and maintain
Cost-effective solution for water treatment and chemical dosing systems
However, plastic valves are not suitable for high-pressure or high-temperature use, as they soften above 60–80°C.
Use Case Example:
A PVC butterfly valve is widely used in irrigation systems, swimming pool circulation, and laboratory pipelines.
Beyond the valve body, the seat material determines how well the valve seals and performs at various temperatures. Common seat options include:
EPDM: Excellent for water and light chemicals, up to 120°C
NBR (Buna-N): Suitable for oils and hydrocarbons
PTFE: Best for corrosive fluids and high-temperature service
Viton: Resistant to aggressive chemicals and solvents
Choosing the right seat material ensures optimal sealing, reduces maintenance costs, and enhances valve service life.
When selecting a butterfly valve for your application:
Identify the medium: water, gas, oil, acid, or slurry.
Assess temperature and pressure levels.
Evaluate corrosion potential and chemical compatibility.
Balance cost and durability according to the system’s criticality.
Using this structured approach ensures your butterfly valve operates safely, efficiently, and with minimal maintenance downtime.
Selecting the right butterfly valve material is not just a technical requirement—it’s a key factor that defines system reliability, safety, and cost-efficiency. From cast iron valves in municipal water systems to PTFE-lined butterfly valves in corrosive chemical plants, each material has a specific role based on operating conditions.
