In industrial systems, whether it's a water treatment plant, power plant, oil refinery, or chemical plant, valves are essential for regulating, isolating, or throttling fluids. Compared to other valve types, butterfly valves are favored for their compact design, light weight, quick operation, and cost-effectiveness. However, not all butterfly valves are suitable for the same conditions:some perform exceptionally well under high pressure, while others are designed for corrosive media or precise flow control. This article details the most common butterfly valve types used in industrial applications, their key characteristics, and ideal application scenarios to help you make informed decisions for your specific system.
The concentric butterfly valve (also called a “centric butterfly valve”) is the most basic and widely used type in industrial settings. Its defining feature is a simple design where the valve’s disc (the circular component that controls flow) is centered directly on the valve’s shaft, with a tight seal that presses against the valve seat when closed. This concentric alignment creates a straightforward on/off or throttling mechanism, making it easy to install, operate, and maintain.
Seal type: Typically uses an elastomeric seat (e.g., EPDM, NBR, or PTFE-lined rubber) that forms a tight seal when the disc is closed, preventing leaks in low-to-medium pressure applications.
Pressure and temperature range: Ideal for systems with pressures up to 150 psi (10 bar) and temperatures between -40°C (-40°F) and 120°C (248°F)—well-suited for non-aggressive fluids.
Design simplicity: Fewer moving parts than other butterfly valve types, reducing the risk of mechanical failure and lowering maintenance costs.
Concentric butterfly valves are a top choice for industries where pressure and temperature demands are moderate, such as:
Municipal water and wastewater treatment (for controlling raw water or treated effluent flow).
HVAC systems (regulating chilled water or hot air in commercial buildings or industrial facilities).
Food and beverage processing (handling non-corrosive liquids like milk, juice, or water, thanks to food-grade elastomeric seats).
For teams searching for cost-effective butterfly valves for low-pressure water or HVAC systems, concentric models offer reliable performance without the complexity of higher-end designs.

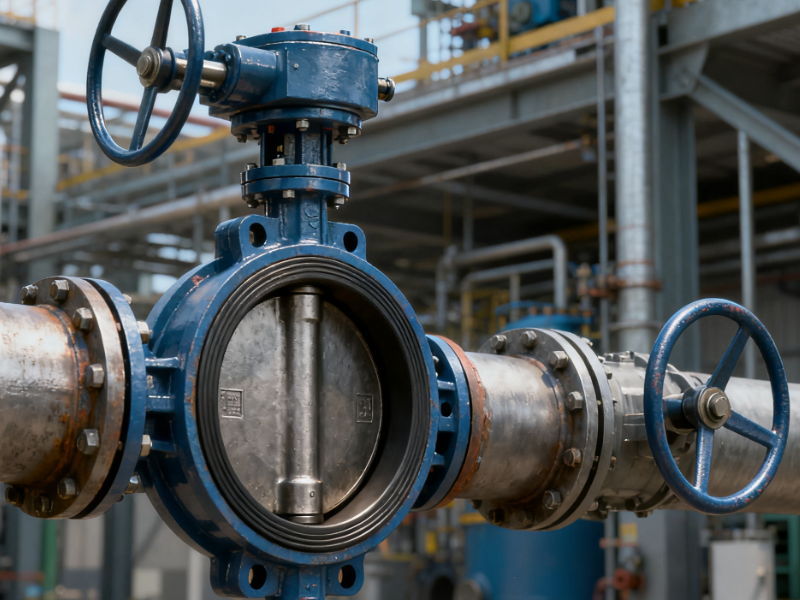

Unlike concentric butterfly valves, eccentric butterfly valves feature a disc that is offset (eccentric) from the valve’s shaft and seat. This offset design eliminates friction between the disc and seat during operation: when the valve opens, the disc lifts slightly away from the seat before rotating, reducing wear and extending the valve’s lifespan. Eccentric valves are further categorized into two sub-types based on their offset mechanism, each optimized for specific industrial needs.
The single-eccentric valve has one offset: the disc’s center is shifted from the shaft’s center. This minimal offset reduces seat friction, making it more durable than concentric valves for higher-pressure applications. It often uses a metal seat (e.g., stainless steel or bronze) instead of elastomers, allowing it to handle more aggressive fluids and higher temperatures.
The double-eccentric valve (also called a “high-performance butterfly valve”) adds a second offset: the shaft itself is offset from the valve’s seat. This dual offset creates a cam-like action when the valve opens, lifting the disc completely away from the seat to avoid contact during rotation. This design is ideal for high-pressure, high-temperature (HPHT) systems and corrosive media.
Seal and material options: Metal seats for high temperatures (up to 400°C / 752°F) or elastomeric seats for enhanced leak tightness in moderate conditions.
Pressure range: Handles pressures up to 600 psi (41 bar)—suitable for industrial systems with higher flow demands.
Wear resistance: The offset disc design minimizes seat damage, making these valves ideal for frequent cycling (opening/closing multiple times per day).
Eccentric butterfly valves excel in harsh industrial environments, including:
Oil and gas processing (controlling crude oil, natural gas, or refined fuels in pipelines).
Chemical manufacturing (handling corrosive liquids like acids, alkalis, or solvents, thanks to corrosion-resistant metal seats).
Power generation (regulating steam or cooling water in thermal power plants, where high temperatures and pressures are common).
For engineers seeking durable butterfly valves for high-pressure oil or chemical pipelines, eccentric models are a reliable upgrade from concentric designs.
The triple-eccentric butterfly valve (often called a “tri-eccentric” or “zero-leak butterfly valve”) is the most advanced type, designed for industrial applications where absolute leak tightness and resistance to extreme conditions are non-negotiable. It builds on the double-eccentric design by adding a third offset: the disc’s sealing surface is angled (eccentric) relative to the valve’s seat. This triple offset creates a “wedge” effect when closed, pressing the disc against the seat with uniform pressure to achieve zero leakage—even in high-pressure, high-temperature, or toxic fluid systems.
Zero-leak performance: Meets strict industry standards for leak tightness (e.g., API 607 for fire safety, ISO 5208 Class VI for bubble-tight sealing), making it suitable for hazardous media.
Extreme condition tolerance: Handles pressures up to 1,440 psi (100 bar) and temperatures ranging from -196°C (-321°F) (for cryogenic applications) to 600°C (1,112°F) (for high-temperature steam).
Seat material: Typically uses metal-to-metal sealing (e.g., Inconel, Hastelloy, or stainless steel) for durability, though PTFE-lined metal seats are available for chemical resistance.
Triple-eccentric butterfly valves are critical for industries where leaks could cause safety incidents, environmental harm, or costly downtime, such as:
Petrochemical refining (controlling toxic or flammable liquids like benzene or ethylene).
Cryogenic storage and transport (handling liquefied natural gas (LNG) or liquid oxygen, where low temperatures demand leak-tight sealing).

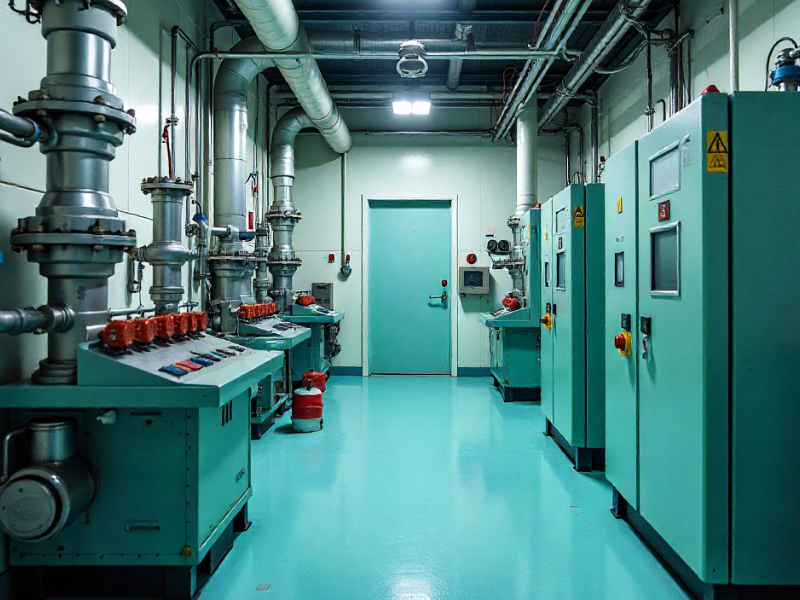

Nuclear power plants (regulating coolant flow, where even minor leaks pose significant risks).
For facilities requiring zero-leak butterfly valves for toxic or cryogenic industrial systems, triple-eccentric models are the gold standard.
The lug-type butterfly valve is defined by its installation design, not its disc alignment (it can be concentric, eccentric, or triple-eccentric). It features threaded lugs (protrusions) on the valve’s body that allow it to be bolted directly to pipeline flanges on both the upstream and downstream sides. This “double-bolted” design offers two key advantages for industrial systems: easy removal and modular flexibility.
Independent installation: Unlike wafer-type butterfly valves (which require clamping between two flanges), lug-type valves can be removed from the pipeline without disconnecting adjacent pipes—saving time during maintenance.
Pressure distribution: The lugs evenly distribute pressure across the valve body, reducing stress on the pipeline and preventing leaks in high-pressure applications.
Versatility: Compatible with a wide range of pipe materials (e.g., steel, PVC, or ductile iron) and can be used with concentric, eccentric, or triple-eccentric discs.
Lug-type butterfly valves are perfect for industrial systems where maintenance accessibility is critical, such as:
Mining operations (controlling slurry flow, where frequent valve cleaning or replacement is needed).
Pulp and paper manufacturing (regulating water or chemical flow in modular pipe networks).
Industrial wastewater treatment (handling abrasive fluids, where easy valve removal simplifies repair).
For teams needing easy-to-maintain butterfly valves for modular industrial pipelines, lug-type designs reduce downtime and streamline maintenance workflows.
Selecting the correct butterfly valve depends on three critical factors:
(1) Pressure and temperature: Use concentric valves for low pressure, eccentric for medium-to-high pressure, and triple-eccentric for extreme HPHT conditions.
(2) Fluid type: Elastomeric seats for non-corrosive fluids (water, HVAC), metal seats for corrosive or toxic media (chemicals, oil).
(3) Installation and maintenance needs: Lug-type for easy removal, wafer-type for space savings.
By aligning these factors with your industry’s specific requirements—whether you’re controlling water in a treatment plant or toxic chemicals in a refinery—you can ensure your butterfly valve operates reliably for years.
Overall,understanding common types of butterfly valves in industrial applications is the first step toward building efficient, safe fluid control systems. From concentric valves for low-pressure water lines to triple-eccentric models for zero-leak cryogenic systems, each type offers unique benefits tailored to specific industrial needs. By prioritizing pressure, fluid type, and installation constraints, you can choose a valve that minimizes downtime, reduces costs, and meets safety standards.If you still have questions about selecting the right butterfly valve, please feel free to contact us by +86-18611864848 and banmy@bjafatech.com. We offer customized services. You can also learn more about our products by browsing our website:www.bjafatech.com.
