Ball valves are versatile flow control devices, but their suitability for vacuum conditions (pressure below atmospheric pressure, often <1 atm) depends on design, material, and sealing performance. Vacuum environments—common in industries like semiconductor manufacturing, pharmaceutical lyophilization, and aerospace—require valves to prevent air ingress (which disrupts vacuum integrity) and withstand pressure differentials. While standard ball valves may fail in high-vacuum scenarios, specially designed vacuum ball valves excel at maintaining tight sealing and reliable operation. This guide explains when and how to use ball valves in vacuum conditions, plus critical selection and maintenance tips.

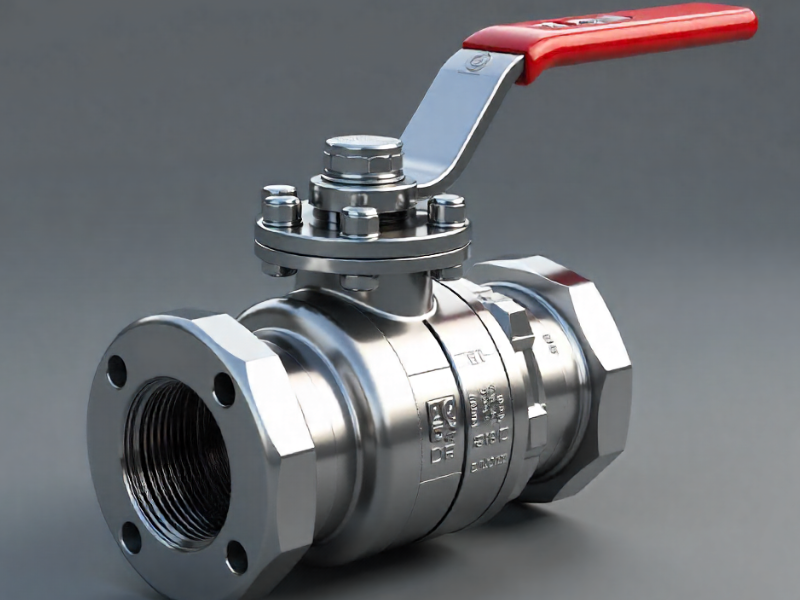

Standard ball valves (designed for atmospheric or positive-pressure systems) are rarely suitable for vacuum conditions, due to three key limitations:
Poor Sealing Integrity: Standard ball valves use soft seals (e.g., PTFE) or metal seals with minimal contact pressure. In vacuum, the pressure differential pulls air into the valve through tiny gaps between the ball and seat—breaking the vacuum and contaminating the system (e.g., ruining pharmaceutical freeze-drying processes).
Outgassing Risks: Many materials in standard ball valves (e.g., low-grade rubber gaskets, lubricants) release volatile organic compounds (VOCs) in vacuum. These outgases accumulate in the system, reducing vacuum levels and damaging sensitive equipment (e.g., semiconductor wafers).
Pressure Differential Damage: Standard valve bodies and stems may deform under high vacuum (e.g., <10⁻³ Torr), as they’re not engineered to withstand the external atmospheric pressure pushing against the valve. This deformation can cause stem binding or seat misalignment, leading to leaks.
To work in vacuum conditions, vacuum ball valves require specialized designs that address the above limitations:
Metal-to-Metal Seals: For ultra-high vacuum (UHV, <10⁻⁹ Torr) applications (e.g., particle accelerators), vacuum ball valves use metal seals (e.g., copper, Inconel) with precision-machined surfaces. These seals are compressed to create a hermetic seal that resists air ingress, even at extreme pressure differentials.
Enhanced Soft Seals: For medium vacuum (10⁻³ to 1 atm) (e.g., food packaging vacuum sealers), valves use low-outgassing soft seals (e.g., perfluoroelastomers, high-purity PTFE). These materials minimize VOC release and maintain flexibility in vacuum, ensuring consistent sealing.
Valve Body: Constructed from low-outgassing metals like 316L stainless steel or aluminum alloy, which release minimal gases in vacuum.
Internal Components: Stem packing and gaskets use materials certified for low outgassing (e.g., Viton GLT, PTFE with <0.1% volatile content), preventing contamination of the vacuum system.
Reinforced Valve Body: Thickened walls and reinforced flanges (e.g., ISO-K or CF vacuum flanges) withstand external atmospheric pressure, preventing deformation in high vacuum.
Guided Stem Design: A stabilized stem with precision bearings ensures smooth operation without binding, even under pressure differentials—critical for maintaining seal alignment.

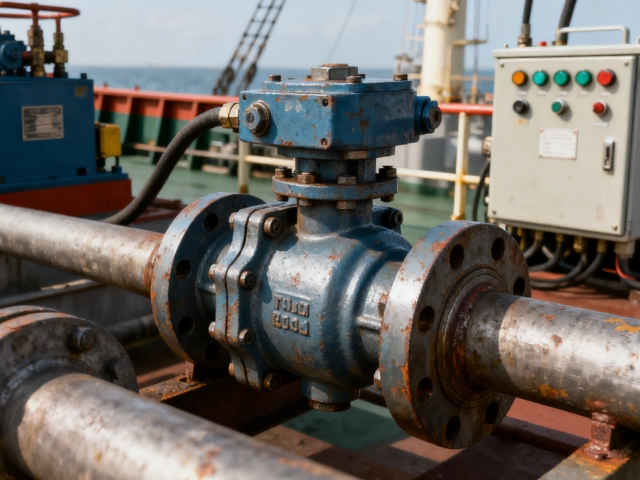

Wafer Processing: Vacuum ball valves control the flow of inert gases (e.g., argon) in vacuum chambers during plasma etching or deposition. Their hermetic seals prevent air contamination, which would damage the delicate semiconductor layers.
Lyophilization (Freeze-Drying): In pharmaceutical freeze-dryers, vacuum ball valves isolate the drying chamber from the vacuum pump. Low-outgassing seals ensure no contaminants leach into the product (e.g., vaccines, freeze-dried foods).
Vacuum Packaging: Medium-vacuum ball valves regulate the evacuation of air from food packaging (e.g., vacuum-sealed meat), maintaining consistent vacuum levels to extend shelf life.
Space Simulation Chambers: UHV ball valves control gas flow in chambers that simulate space conditions (e.g., satellite component testing). Metal seals and low-outgassing materials ensure the chamber maintains <10⁻⁹ Torr, replicating the vacuum of space.
Laboratory Vacuum Systems: In chemistry labs, vacuum ball valves isolate reaction vessels under vacuum (e.g., distillation of high-boiling-point solvents), preventing air from interfering with reactions.
Flange Compatibility: Use vacuum-specific flanges (e.g., ISO-K, CF) and gaskets (e.g., copper gaskets for CF flanges) to ensure a hermetic seal. Avoid standard pipe flanges, which have gaps that leak in vacuum.
Torque Control: Tighten flange bolts to the manufacturer’s specified torque (e.g., 15 N·m for M10 bolts) using a calibrated torque wrench. Over-tightening can damage metal seals; under-tightening creates leaks.
Leak Testing Post-Installation: Use a helium leak detector (the gold standard for vacuum systems) to check for leaks. Acceptable leak rates for vacuum ball valves are typically <1×10⁻⁹ std cm³/s.
Minimize Cycles: Avoid frequent opening/closing of vacuum ball valves, as this wears down seals. For systems requiring frequent cycling, choose valves with hardened seals (e.g., tungsten carbide-coated balls).
Cleaning: Use low-outgassing solvents (e.g., isopropyl alcohol) to clean valve internals—never use oil-based cleaners, which release VOCs in vacuum.
Seal Replacement: Replace seals every 1–2 years (or as per manufacturer recommendations) to maintain sealing integrity. Use only OEM replacement parts to ensure compatibility with vacuum conditions.
Vacuum Level: Match the valve to the system’s vacuum range (e.g., UHV valves for <10⁻⁹ Torr, medium-vacuum valves for 10⁻³ to 1 atm).
Media Compatibility: Ensure valve materials resist the fluid/gas (e.g., corrosion-resistant 316L for aggressive gases like chlorine).
Leak Rate: Select valves with leak rates ≤1×10⁻⁹ std cm³/s for critical applications (e.g., semiconductor processing) to avoid system contamination.
In summary, ball valves can be used in vacuum conditions—provided they are specialized vacuum ball valves designed with hermetic seals, low-outgassing materials, and pressure-resistant construction. Standard ball valves lack these features and will fail in vacuum, but vacuum-compatible models excel in industries like semiconductor manufacturing, pharmaceuticals, and aerospace. By selecting the right vacuum ball valve and following proper installation and maintenance practices, you can ensure reliable, leak-free operation in even the most demanding vacuum environments.If you want to learn more information about valves,you can consult us by +86-18611864848 or banmy@bjafatech.com.And also you can visit our website:https://www.bjafatech.com,where we will provide the latest news.
