Interchangeable Valve Internals
The valve internals of flanged and wafer - type connections are interchangeable. This characteristic effectively reduces the quantity of spare parts required, optimizing inventory management and reducing maintenance costs.
Facilitated Installation
The integral valve body flange is compatible with a variety of pipeline flange ratings, thereby satisfying diverse piping requirements. This flange design not only conceals pipeline flange bolts but also streamlines the alignment and installation processes. As a result, it significantly reduces the time needed for installation and enhances the reliability of valve installation and the integrity of the pipeline system.
Extensive Applicability
The standard configuration adheres to the structural length dimensions specified in ISA S75.08.02 and IEC 543 - 3 - 2 standards. Alternatively, the optional configuration can adopt the short structural length dimensions in accordance with ASME B16.10 standards. It should be noted that the IEC 543 - 3 - 2 structural length dimensions are equivalent to those of ISA S75.08.02. This flexibility allows the valve to be seamlessly integrated into various industrial systems.

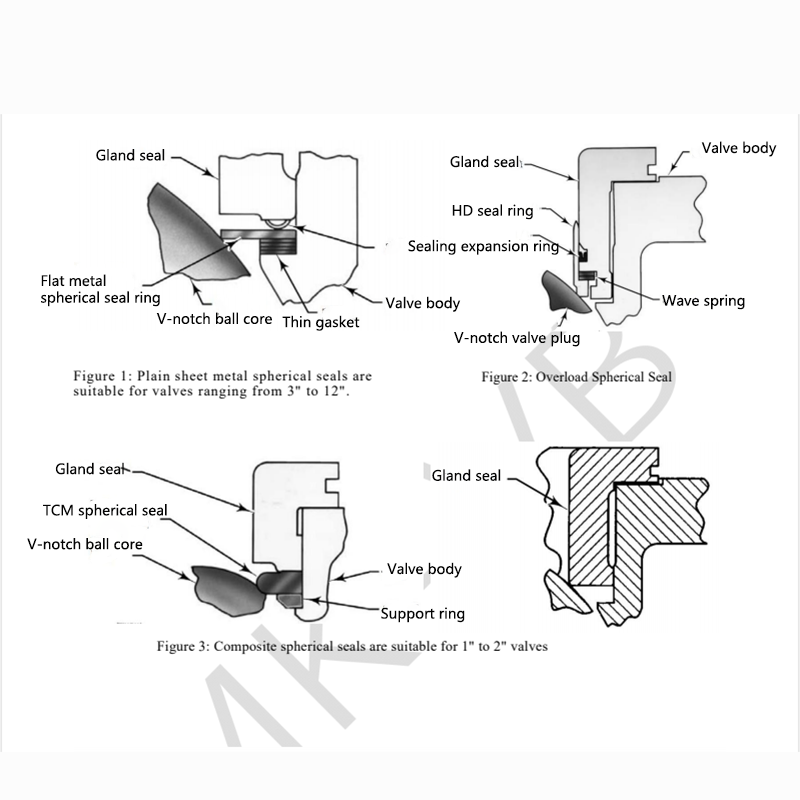

Prolonged Service Life
The robust HD spherical seal structure exhibits remarkable durability even under severe operating conditions. The seal continuously wipes the sealing surface of the ball core, effectively preventing the accumulation of scale and sludge. This not only ensures a longer service life but also enables the valve to maintain excellent performance in steam, gas, slurry, and various liquid media.
Superior Flow Capacity
The V - shaped ball valve features a precisely contoured design, which endows it with a modified equal - percentage flow characteristic. For applications demanding highly precise low - flow control, smaller - sized valves can be equipped with miniature notched ball cores, enabling accurate regulation of fluid flow.
Compatibility with Acidic Environments
The valve internals and bolts are constructed from materials specifically selected for their resistance to acidic conditions. This makes the valve suitable for use in chemical processing and other industries where exposure to acidic media is common.
Smooth Valve Operation
The precision - machined components and pressure - balanced sealing design ensure the accurate and smooth movement of the ball core. This results in consistent and reliable valve operation, minimizing the risk of operational failures and ensuring optimal control of fluid flow.
Simplified and Expedited Maintenance
Inspection and replacement of the spherical seal can be performed at the valve body inlet without the need for actuator disassembly or valve disassembly. This straightforward maintenance procedure eliminates the requirement for specialized tools, reducing downtime and maintenance complexity.
Structural Integrity

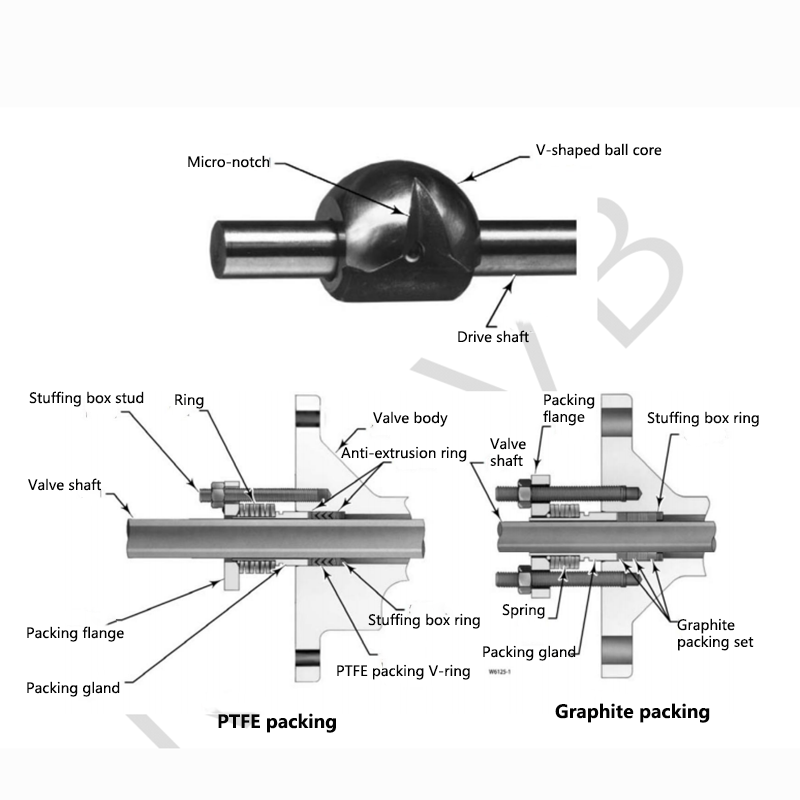

The integral valve design obviates the need for gaskets, which are commonly used in split - type valves. This not only enhances the structural integrity of the valve but also eliminates the risk of leaks caused by gasket failure, ensuring a more reliable and efficient operation. Moreover, the optional packing system, in conjunction with a smooth shaft surface and dynamically loaded packing, offers excellent sealing performance, contributing to a more environmentally friendly operation.
Special Valve Internals for Harsh Conditions
The V - shaped ball valve can be equipped with noise reducers or anti - cavitation valve internals for use in harsh operating conditions. This combination of the high efficiency of rotary valves and the energy -absorbing capabilities of specialized valve internals enhances the valve's performance in demanding applications, ensuring reliable operation and extended service life.
