Floating ball valves are one of the most widely used types of ball valves, highly regarded for their simple construction, cost-effectiveness, and reliable sealing in low- and medium-pressure systems. As a key component in pipelines, industrial piping, and fluid control devices, understanding how floating ball valves work is crucial for anyone involved in flow management. Let's explore their design, function, applications, and practical considerations in detail.
A floating valve is a quarter-turn valve in which the spherical ball (the core control element) is not fixed to the valve body or stem. Instead, the ball "floats" within the valve body, held in place solely by fluid pressure and the compression of the valve seat. This floating design is what distinguishes it from other ball valve types, such as trunnion-type ball valves, which use trunnions to secure the ball.
The ball of a floating ball valve has a central hole that aligns with the valve inlet and outlet when open, allowing fluid flow. When closed, the ball rotates 90 degrees, and its solid sides block fluid flow—a floating action that enhances the seal between the ball and the valve seat. Unlike trunnion valves, which are fixedly supported to withstand high pressures, floating ball valves rely on fluid pressure to maintain a seal, limiting their application to low-pressure applications.
The simplicity of a floating ball valve is one of its appeals, consisting of only a few key components working together:
Body: The outer casing that connects to the pipe and houses the internal components. Materials range from brass (used in residential applications to prevent rust on water pipes) to stainless steel (for corrosive fluids such as mild chemicals) or PVC (for low-pressure plastic pipes).
Float: A hollow sphere with a hole in it. It has no fixed support, so it moves slightly under fluid pressure—this movement is crucial for creating a tight seal.
Stem: The rod that connects the ball to the handle/actuator. It allows the ball to rotate but does not lock it, allowing it to float. The stem is typically sealed with an O-ring or packing to prevent fluid leakage around the stem.
Valve Seat: A ring that compresses the ball to form a tight seal (typically made of PTFE (a heat- and chemical-resistant material) or metal for high-temperature environments). Depending on the design, these are spring-loaded or fixed to maintain constant pressure on the float.
Handle/Actuator: Manual models operate with a quarter-turn lever; automatic floating ball valves may be remotely controlled using an electric or pneumatic actuator (common in commercial buildings where valves are difficult to access).
The operating principle of a floating ball valve relies on the ball's ability to move (float) under fluid pressure, creating a secure seal. Here's a step-by-step procedure:
When the handle is rotated to align with the pipe, the valve stem rotates the floating ball, aligning its inner bore with the inlet and outlet ports. Fluid flows freely through the inner bore, and due to the smooth surface of the ball, pressure drop is minimal—this efficiency makes floating ball valves ideal for applications where unobstructed flow is critical.
When the handle is rotated 90 degrees (perpendicular to the pipe), the valve stem rotates the ball, bringing its solid surface into contact with the flow path. Fluid pressure from the inlet pushes the floating ball against the outlet seat—because the ball is not fixed, it moves slightly to make contact.
Pressure forces the ball tightly against the outlet seat, compressing it to form a leak-proof seal. This fluid-pressure-driven "self-sealing" action is key to the reliability of floating ball valves. For low-pressure systems, when fluid pressure is too low to effectively push the ball, the spring-loaded seat provides additional force to ensure a seal.
Turning the handle 90 degrees again rotates the ball, aligning the inner bore with the flow path and resuming flow. The quarter-turn action is fast, allowing floating ball valves to close quickly in the event of a leak or emergency.
Why choose a floating ball valveover other valve types? Advantages include:
Simple design: Fewer moving parts reduces wear and maintenance, extending service life—many floating ball valves can last over 10 years with minimal maintenance.
Cost-effective: Easier to manufacture than trunnion valves, making them an ideal choice for budget-conscious projects like residential plumbing or small commercial systems.
Good sealing: The floating action enhances sealing under pressure, minimizing leakage—critical for applications like gas piping or chemical transfer.
Quick operation: The quarter-turn design enables quick on/off control, which is crucial in emergencies (e.g., shutting off a burst water pipe).

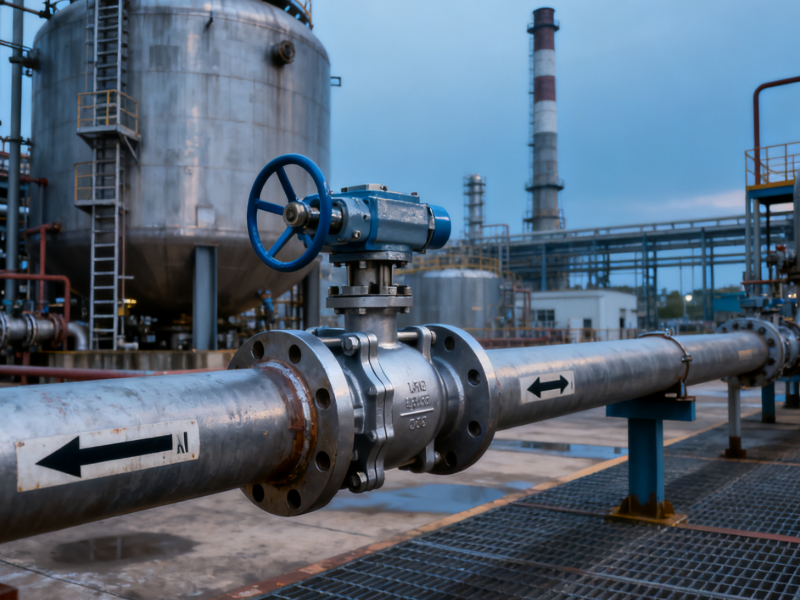

Floating ball valves excel in low- to medium-pressure systems (up to 1,000 psi) and small- to medium-sized diameters (up to 6 inches). Common applications include: Residential and commercial plumbing (water supply lines, gas lines for stoves or heaters).
Chemical processing (for non-abrasive fluids such as solvents or mild acids, using a stainless steel body and PTFE seats).
HVAC systems (controlling the flow of water or refrigerant in air conditioners or heaters).
Food and beverage industry (hygienic valves with a smooth surface and food-grade PTFE seats to prevent contamination).

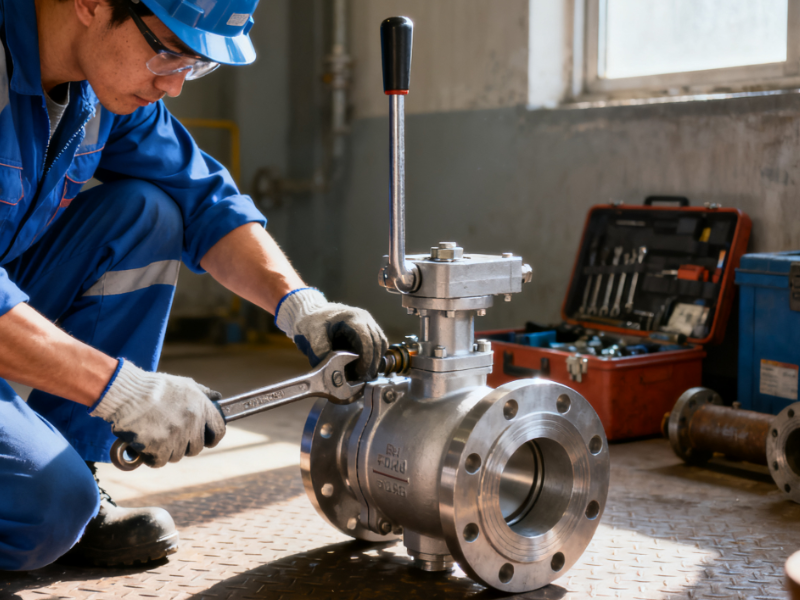

To maximize the life of your floating ball valve, follow these guidelines:
Proper Alignment: When installing the valve, fluid should flow in the direction marked on the valve body—reverse flow will reduce sealing effectiveness.
Lubricate the valve seat: For manual valves, periodically lubricate the PTFE seat with a compatible lubricant to reduce friction during operation.
Check the seal: Inspect the valve stem and seat for leaks annually; replace worn O-rings or seats to maintain performance.
Floating ball valves, with their simplicity and efficiency, are the preferred choice for numerous fluid control applications. Their floating ball design is driven by fluid pressure, creating a tight seal that ensures reliable performance and minimal maintenance. Whether used in domestic plumbing, commercial HVAC, or light industrial equipment, as long as they are within the pressure and fluid compatibility ranges, floating ball valves remain a reliable solution for fast, leak-free flow control. For more information on valve usage and how to use them, visit our website:https://www.bjafatech.com, where we offer a comprehensive guide to valves. If you have any questions, please contact us by +86-18611864848 or banmy@bjafatech.com.
