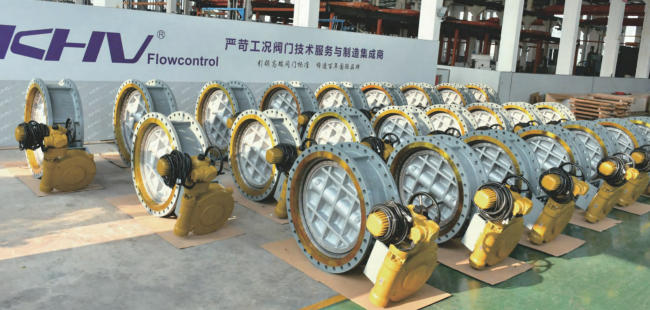

Butterfly valves are favored for their compact design and rapid rotary operation, but improper installation—such as misalignment, incorrect seat placement, or neglecting the pressure rating—can lead to costly leaks, equipment damage, and even system failure. Understanding how to properly install butterfly valves in piping systems is crucial for ensuring leak-free performance, long-term durability, and operational safety. This article details the key steps, tools, and best practices for proper butterfly valve installation, helping maintenance technicians, engineers, and contractors understand how to install butterfly valves correctly to avoid leaks and ensure efficiency.
Before beginning installation, thorough preparation prevents mistakes that could compromise the valve’s functionality. Rushing this step often leads to rework, so take time to confirm compatibility, inspect parts, and gather the right tools.
Butterfly valves must match the pipeline’s specifications to work safely. Check these key factors:
Size: The valve’s nominal diameter (e.g., 2 inches, 6 inches) must exactly match the pipe’s inner diameter. A mismatched size will cause leaks or restrict flow.
Pressure and temperature ratings: The valve’s maximum pressure (e.g., 150 psi, 600 psi) and temperature range (e.g., -40°C to 120°C) must exceed the system’s operating conditions. Using a low-pressure valve in a high-pressure line risks catastrophic failure.
Material compatibility: Ensure the valve’s body (e.g., cast iron, stainless steel, PVC) and seat (e.g., EPDM, PTFE, metal) are resistant to the fluid in the pipeline. For example, use stainless steel valves for corrosive chemicalsand PVC valves for non-aggressive liquids like water.
Connection type: Match the valve’s connection (wafer-type, lug-type, flanged) to the pipeline’s end fittings. Wafer valves require clamping between two flanges, while lug valves bolt directly to flanges—using the wrong type will prevent a secure fit.
Even new valves or pipes can have hidden defects. Conduct these checks:
Valve inspection: Examine the disc (the circular flow-control component) for cracks, dents, or warping. Check the seat for tears (in elastomeric seats) or corrosion (in metal seats). Verify that the handle or actuator moves smoothly—stiffness may indicate internal damage.
Pipeline inspection: Clean the pipe ends to remove debris, rust, or old gasket material. Check for bent flanges or misaligned bolt holes—these will prevent the valve from seating properly.
Having the right tools on hand streamlines installation. You’ll need:
Wrenches (adjustable or torque wrench, depending on bolt size).
Gaskets (compatible with the valve material and fluid—e.g., rubber gaskets for water, PTFE gaskets for chemicals).
Thread sealant (for threaded connections, if applicable).
Level (to ensure alignment).
Cleaning supplies (wire brushes, rags, solvent) to remove debris.
Safety gear (gloves, goggles, face mask) to protect against fluids or debris.
The installation steps vary slightly by valve type (wafer, lug, flanged), but the core principles—alignment, secure seating, and proper torque—apply to all. Below is a universal guide, with notes for specific valve types.
Safety comes first. Before installing the valve:
Close all upstream valves to stop fluid flow to the installation area.
Open downstream drains or vents to depressurize the pipeline—this prevents sudden fluid release during installation.
Wait for the pipeline to cool (if carrying hot fluids) or warm (if carrying cryogenic fluids) to avoid burns or frostbite.
Misalignment is the top cause of leaks, so take time to get this right:
Place the valve between the pipe flanges (for wafer or lug types) or align it with the pipe end (for flanged types).
Use a level to ensure the valve is perfectly horizontal (for horizontal pipes) or vertical (for vertical pipes). A tilted valve will strain the disc and seat, leading to premature wear.
Align the valve’s bolt holes with the pipe flanges’ holes. For wafer valves, ensure the valve is centered—offsetting it will pinch the gasket and cause leaks.
Gaskets create a tight seal between the valve and pipes. Follow these rules:
Choose the right gasket material (e.g., EPDM for water, Viton for oils, PTFE for acids) to match the fluid and temperature.
Place one gasket on each side of the valve (between the valve and pipe flanges). Ensure gaskets are flat and not folded—folds create gaps for leaks.
For lug-type valves, do not overtighten gaskets yet—this can warp the valve body.
Bolts hold the valve in place, but over-tightening or under-tightening causes issues:
Insert bolts through the flange and valve holes. Use washers (if recommended) to distribute pressure and prevent bolt damage.
Tighten bolts in a crisscross pattern (e.g., top-left, bottom-right, top-right, bottom-left). This ensures even pressure across the valve and gaskets, avoiding warping.
Use a torque wrench to apply the manufacturer’s recommended torque (usually listed in the valve’s manual). For example:
Small valves (2–4 inches): 20–30 ft-lbs of torque.
Large valves (6–12 inches): 50–80 ft-lbs of torque.Under-tightening leads to leaks; over-tightening can crack the valve body or crush the gasket.
Notes for Specific Valve Types:
Wafer valves: Ensure the clamping bolts pass through both pipe flanges (not just the valve) to hold the assembly tight.
Lug valves: Bolt the valve to the upstream flange first, then align and bolt to the downstream flange. This prevents shifting.
Flanged valves: Use full-face gaskets that cover the entire flange surface, not just the inner bore.
After installation, verify the valve works correctly before putting the system back into use:
Leak test: Slowly reopen upstream valves to pressurize the system. Check the valve’s body, flange connections, and stem (where the handle meets the valve) for leaks. Use a soapy water solution on suspect areas—bubbles indicate leaks.
Function test: Operate the valve’s handle or actuator (open and close it fully 2–3 times). Ensure the disc moves smoothly without stiffness or sticking. Confirm that closing the valve stops flow completely (check downstream drains for no fluid).
Adjust if needed: If leaks occur, tighten bolts slightly (in crisscross order) or replace the gasket if it’s damaged. If the valve sticks, check for debris in the disc or seat and clean if necessary.
Proper documentation and maintenance extend the valve’s lifespan:
Record installation details: Note the valve model, size, installation date, torque used, and gasket type in a maintenance log. This helps with future repairs or replacements.
Schedule regular inspections: Check the valve monthly for leaks, corrosion, or handle stiffness. Lubricate the stem every 3–6 months to keep operation smooth.
Train personnel: Ensure operators know how to use the valve correctly (e.g., avoid forcing the handle if it sticks) to prevent damage.
Common Installation Mistakes to Avoid
Even experienced technicians make errors—here are the top pitfalls to steer clear of:
Ignoring compatibility: Using a valve with a lower pressure rating than the system will cause failure. Always cross-check specs.
Skipping gasket installation: Gaskets are not optional—without them, leaks are guaranteed.
Tightening bolts in the wrong order: Tightening bolts one after another (e.g., left to right) creates uneven pressure and warps the valve.
Forcing a stuck valve: If the handle won’t move, don’t use a cheater bar—this can break the stem. Instead, disassemble and clean the valve.
Installing a valve in the wrong orientation: Some valves (e.g., check valves integrated with butterfly designs) have flow direction markers—installing them backward prevents proper operation.
Knowing how to properly install a butterfly valve in a piping systemensures your fluid control system operates safely, efficiently, and without costly downtime. By preparing thoroughly, aligning carefully, using proper torque, and testing rigorously, you can avoid leaks and extend the valve’s lifespan. Another important point is that when purchasing valves, you should choose qualified and high-quality butterfly valves to make production work more efficient. To learn how to select suitable valve products, you can browse our website:www.bjafatech.com or contact us by phone +86-18611864848 or email banmy@bjafatech.com.
