Valves are essential fluid control components in industries such as petrochemicals, water treatment, HVAC, and manufacturing.Different valve types are designed to handle specific media (liquids, gases, slurries), pressures, and temperatures, each with its own unique structure and operating principle. Understanding the differences between common valve types, such as ball valves, butterfly valves, and specialized control valves, is crucial for selecting the right valve to ensure system efficiency, safety, and reliability. Below is a detailed breakdown of the main valve types, including their subcategories, core features, and typical applications.

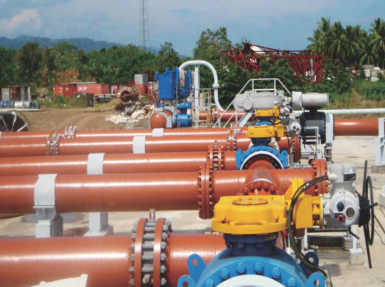

Ball valves use a hollow, spherical "ball" (valve plug) rotated 90° to regulate flow. They are popular for their fast operation, excellent sealing, and low maintenance. Common subcategories include:
Construction: The ball "floats" (not fixed to the trunnion) and is held in place by the valve seat. When closed, fluid pressure pushes the ball against the downstream seat, creating a seal.
Key Features: Simple design, low cost, suitable for low to medium pressures (up to Class 600) and small to medium diameters (DN15–DN300).
Applications: Residential plumbing (water supply lines), commercial HVAC (chilled water), and light industrial processes (chemical metering with non-abrasive media).
Construction: The ball is supported by two trunnions (shafts) at the top and bottom, preventing excessive movement under high pressure.
Key Features: High-pressure resistance (up to Class 2500), wide-diameter compatibility (DN50–DN1200), and a durable seal (suitable for abrasive media).
Applications: Petrochemical pipelines (crude oil, natural gas), offshore drilling, and high-pressure gas transportation—where stability under extreme pressures is critical.
Construction: Orbital ball valves combine the ball's quarter-turn motion with the ball's orbital (tilting) motion. The ball tilts away from the seat before rotating, reducing friction and seat wear.
Key Features: Excellent shutoff performance (ANSI Class VI), long service life, and suitable for high-temperature systems (up to 500°C).
Applications: Power plant steam lines, industrial heating systems, and processes with frequent on-off cycles (such as food and beverage bottling).
Butterfly valves feature a circular disc (spool) mounted on a central axis that can be rotated from 0° to 90° to control flow. They are lightweight, space-saving, and ideal for high-flow systems.
Construction: The disc is located in the center of the valve body, and a rubber or PTFE seat forms a seal against the disc edge.
Key Features: Low cost, easy installation, and suitable for low- to medium-pressure (up to Class 300) and high-temperature (up to 200°C) applications.
Applications: Municipal water treatment (raw water intake, treated water distribution), HVAC dampers, and low-pressure chemical pipelines (such as detergent production).
Construction: The disc axis is offset from the valve center and the seat center, reducing contact between the disc and seat during rotation.
Key Features: Compared to centered butterfly valves, this valve offers more durable seats, higher pressure ratings (up to Class 600), and improved throttling control.
Applications: Petrochemical refining (process fluid control), wastewater treatment (slurry transfer), and marine systems (seawater cooling).
Construction: The addition of a third eccentric (angular offset of the disc) completely eliminates seat contact during rotation, achieving a metal-to-metal seal.
Key Features: Fireproof design, high-temperature resistance (up to 800°C), and zero leakage (ANSI Class V-VI)—equivalent to a globe valve, but more compact.
Applications: High-temperature steam systems (power plants), incinerator flue gas control, and critical petrochemical processes (such as ethylene production).
Control valves dynamically adjust media parameters based on signals from sensors or controllers. They are crucial for automated industrial processes, and common subcategories include:
Structure: Three-way control valves have three ports (one inlet and two outlets or two inlets and one outlet) for diverting or mixing fluids. The valve core is adjustable to control flow distribution.
Key Features: Saves space (replaces two check valves), simplifies piping, and enables precise mixing (for example, mixing hot and cold water).
Applications: Heating, Ventilation, and Air Conditioning (HVAC) temperature control (mixing hot and cold water for room heating), chemical synthesis (quantitative measurement of two reactants), and petrochemical distillation (reflux control).
Structure:Eccentric rotary plug valvesutilize an eccentric (off-center) plug that rotates and lifts slightly during operation, reducing seat wear and ensuring a secure seal.
Key Features: High flow, excellent throttling performance (linear or equal percentage flow curves), and resistance to sticky media (e.g., viscous fluids).
Applications: Pulp and paper industry (stock control), food processing (syrup or oil regulation), and pharmaceutical manufacturing (API metering).
Structure: Self-operated control valves require no external power (electricity, compressed air)—they utilize the pressure, temperature, or flow of the controlled medium to actuate the valve (via a diaphragm or wax capsule).
Key Features: Low operating costs, simple maintenance, and fast response to parameter changes, making them suitable for remote or off-grid systems.
Applications: Water supply (mains pipeline pressure stabilization), oil storage tanks (exhaust pressure control), and HVAC systems (radiator temperature regulation in residential buildings).
Structure: A linearly movable valve core (up and down) adjusts the gap between the valve core and the valve seat, achieving ultra-precise throttling.
Key Features: Best-in-class control accuracy (±0.5% of setpoint), wide pressure/temperature range (up to Class 2500, 600°C), but higher pressure drop than other control valves.
Applications: Pharmaceutical API manufacturing (strict dosage control), semiconductor processing (ultrapure water regulation), and power plant boiler feedwater control.
Media Characteristics: Corrosive media (e.g., acids) require valves with Hastelloy or polytetrafluoroethylene (PTFE) components; abrasive media (e.g., slurries) require hardened internals (e.g., tungsten carbide).
Operating Conditions: High-pressure systems (e.g., oil pipelines) require trunnion ball valves or triple-eccentric butterfly valves; high-temperature systems (e.g., steam) require metal-seated valves.
Control Requirements: On/off control (using ball valves/butterfly valves); precision throttling (using globe valves or eccentric rotary plug valves); automatic regulation (usingcontrol valves with actuators).
In summary, different valve types—fromfloating ball valves for domestic use to triple-offset butterfly valves for high-temperature industrial systems—are tailored to specific needs. By understanding the unique characteristics of each valve type and its subcategories, industries can select the optimal valve to improve efficiency, ensure safety, and maintain reliable fluid control. Whether in water treatment, petrochemical, or heating, ventilation, and air conditioning (HVAC), the right valve type is fundamental to system performance.To learn more about valves, please visit our website:https://www.bjafatech.com. If you have any questions, please feel free to contact us by +86-18611864848 or banmy@bjafatech.com.
