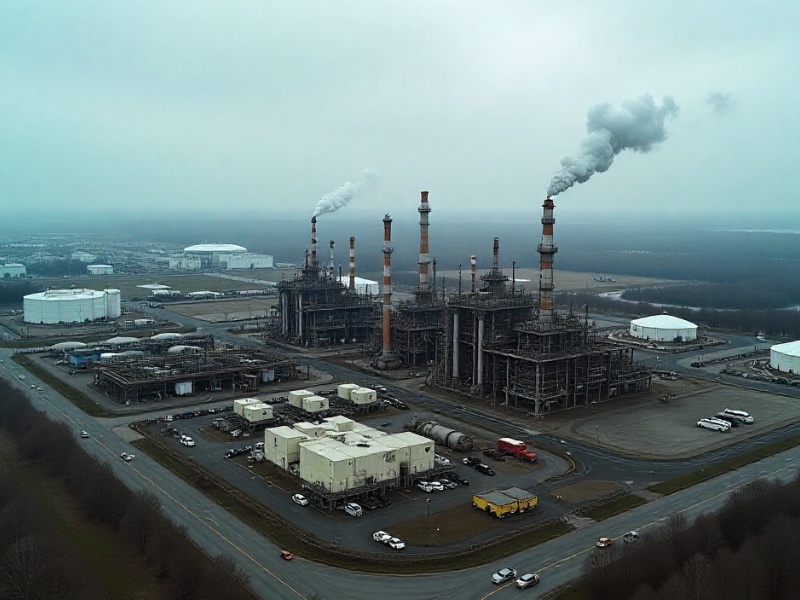

In industrial settings like oil refineries, gas processing plants, and chemical facilities, accessing pipelines for inspection, maintenance, or cleaning is a frequent necessity—but traditional blind flanges (which require removing and reinstalling dozens of bolts) are time-consuming and labor-intensive. This is where quick-opening blind flanges (often called quick-opening blinds or QOBs) come in: they are specialized pipeline components designed to enable fast, safe access to closed pipeline sections without the hassle of traditional bolted blinds. Understanding what a quick-opening blind flange is and how it works is critical for maintenance teams, engineers, and facility managers looking to reduce downtime, improve safety, and streamline operations.

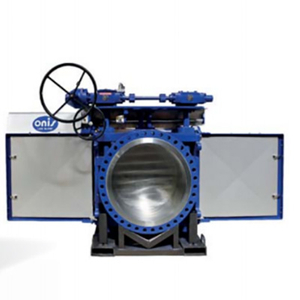

A quick-opening blind flange is a removable, pressure-rated component used to seal the end of a pipeline or isolate a section of pipe (known as a “dead leg”) while allowing rapid opening and closing for access. Unlike standard blind flanges—flat metal discs secured by multiple bolts that take hours to remove—quick-opening blinds use a simplified latching or clamping mechanism. This design lets technicians open or close the flange in minutes (often 5–15 minutes, compared to 1–2 hours for traditional blinds), drastically reducing downtime for tasks like:
Inspecting pipeline interiors for corrosion, cracks, or blockages.
Cleaning or pigging (using a “pig” device to clear debris) pipeline sections.
Maintaining or replacing internal components (e.g., filters, valves) in isolated pipe segments.
Performing pressure tests on new or repaired pipelines.
At their core, quick-opening blind flanges balance two critical needs: reliable pressure sealing (to contain hazardous fluids like oil, gas, or chemicals) and fast accessibility (to minimize operational disruptions). They are rated for specific pressure and temperature ranges (matching industrial pipeline standards like ANSI/ASME B16.5) and are made from durable materials to withstand harsh industrial environments.
To understand why quick-opening blinds are faster than traditional flanges, it’s important to break down their design. While variations exist between types, most quick-opening blind flanges share four essential components that enable quick operation and secure sealing:
The blind disc is the flat or curved metal plate that physically seals the pipeline opening. It is typically made from high-strength materials like carbon steel, stainless steel, or alloy steel (e.g., Hastelloy for corrosive fluids) to match the pipeline’s material and pressure rating. The disc’s sealing surface is often coated with a soft material (e.g., nitrile rubber, PTFE, or metal gaskets) to create a leak-tight seal when compressed against the pipeline flange.
This is the “quick-opening” heart of the component. Unlike traditional blinds that use 8–24 bolts, quick-opening blinds rely on a simplified mechanism to secure the disc. Common designs include:
Cam locks: Rotating cam levers that lock the disc into place with a quarter-turn motion.
Toggle clamps: Spring-loaded or manual toggles that apply even pressure to the disc.
Threaded locks: A single central thread that tightens the disc (faster than multiple bolts but slower than cams/toggles).The mechanism ensures the disc is pressed uniformly against the pipeline flange, preventing leaks even at high pressures (up to 10,000 psi for heavy-duty models).
Nearly all industrial quick-opening blind flanges include a safety interlock to prevent accidental opening while the pipeline is pressurized—a common cause of industrial accidents. These interlocks can be:
Pressure-activated: A valve that blocks the latching mechanism until pipeline pressure is vented to zero.
Mechanical locks: A pin or key that must be removed only after pressure is released.
Visual indicators: A pressure gauge or color-coded tag that shows whether the pipeline is safe to open.This component is non-negotiable for systems handling flammable, toxic, or high-pressure fluids.
A manual handle (for small-to-medium blinds) or a pneumatic/hydraulic actuator (for large or heavy-duty models) is used to operate the latching mechanism. Manual handles are simple and cost-effective, while actuators are ideal for blinds that are large (12+ inches in diameter) or installed in hard-to-reach areas (e.g., high pipelines or confined spaces).
Quick-opening blinds are not one-size-fits-all—different designs are optimized for specific pipeline sizes, pressures, and fluids. Below are the three most common types used in industrial settings:
The most widely used type, single-door quick-opening blinds feature a single, solid blind disc that covers the entire pipeline opening. They are simple in design, easy to maintain, and suitable for most low-to-high pressure applications (up to 6,000 psi).
Key Features:
Size range: 2–48 inches (common in water treatment, HVAC, and mid-pressure oil/gas lines).
Sealing: Uses a single gasket around the disc perimeter.
Best for: Routine inspections, cleaning, or maintenance where full pipeline access is needed.
Ideal Applications:
Municipal water and wastewater treatment plants (isolating pipe sections for cleaning).
Mid-size oil and gas gathering lines (inspecting for corrosion or blockages).
Chemical processing facilities (accessing pipelines for filter replacement).

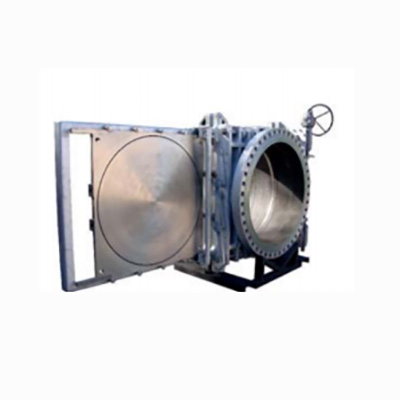

Double-door quick-opening blinds have two overlapping or hinged discs that open separately. This design is ideal for large-diameter pipelines (36+ inches) where a single heavy disc would be difficult to handle manually. By splitting the disc into two parts, technicians can open one door at a time, reducing physical effort and improving safety.
Key Features:
Size range: 36–120 inches (used in large industrial or municipal pipelines).
Sealing: Each door has its own gasket, with a secondary seal between the two doors to prevent leaks.
Best for: Large pipelines where handling a single disc is impractical.
Ideal Applications:
Oil refinery main pipelines (60+ inches in diameter).
Municipal water transmission lines (supplying water to cities).
Power plant cooling water pipelines (large-diameter lines for heat exchangers).
Designed for extreme pressure and temperature environments (HPHT), high-pressure quick-opening blinds are built with reinforced discs, heavy-duty latching mechanisms, and metal-to-metal seals (instead of soft gaskets) to withstand pressures up to 15,000 psi and temperatures from -196°C (-321°F) to 650°C (1,202°F).
Key Features:
Materials: Alloy steels (e.g., Inconel, Monel) or forged carbon steel for strength.
Sealing: Metal gaskets (e.g., spiral-wound or ring-joint gaskets) that maintain seals under extreme conditions.
Safety: Dual interlocks (pressure-activated + mechanical) to prevent accidents.
Ideal Applications:
Offshore oil and gas drilling (subsea pipelines with high pressure).
Cryogenic storage facilities (handling liquefied natural gas (LNG) or liquid nitrogen).
High-pressure chemical reactors (processes requiring extreme pressure for reactions).
Selecting the correct quick-opening blind depends on four critical factors:
Pipeline Size and Pressure/Temperature Rating: The blind must match the pipeline’s diameter (e.g., 8-inch blind for 8-inch pipe) and exceed its maximum operating pressure (MOP) and temperature. For example, a pipeline with a MOP of 1,500 psi needs a blind rated for at least 1,500 psi.
Fluid Type: Corrosive fluids (e.g., acids, saltwater) require blinds made from stainless steel or alloy steel with PTFE seals. Flammable fluids (e.g., gasoline, natural gas) need blinds with fire-safe seals (rated to API 607).
Access Frequency: If the pipeline needs monthly inspections, a manual quick-opening blind is sufficient. For daily access (e.g., in continuous processing), a pneumatic or hydraulic actuator will save time.
Installation Location: Blinds in confined spaces or high areas may require actuators (no manual lifting), while above-ground, easy-to-reach blinds can use manual handles.
Understanding what a quick-opening blind flange is and its benefits for industrial piping systems is the first step toward reducing downtime, improving safety, and cutting maintenance costs. Whether you’re operating an oil refinery, chemical plant, or municipal water system, quick-opening blinds offer a faster, safer alternative to traditional bolted blinds—without compromising on pressure sealing or reliability.
