Selecting the right valve is critical for ensuring the safety, efficiency, and longevity of fluid control systems in industries like petrochemicals, water treatment, HVAC, and manufacturing. A poor valve choice can lead to leaks, operational downtime, increased energy costs, or even hazardous incidents (e.g., chemical spills or gas explosions). To avoid these issues, buyers must evaluate key factors that align the valve’s performance with the system’s unique requirements. Below is a detailed breakdown of the essential considerations for valve selection.
The nature of the fluid (liquid, gas, slurry, or vapor) being controlled is the most fundamental factor, as it directly impacts valve material compatibility and structural design.
Corrosiveness: Aggressive media like acids (sulfuric acid), alkalis (sodium hydroxide), or saltwater require valves made of corrosion-resistant materials. For example:
Use Hastelloy or 316L stainless steel valves for acidic chemical processes (e.g., pharmaceutical API synthesis).
Choose PTFE-lined valves for highly corrosive fluids (e.g., chlorine in water treatment) to prevent the valve body from degrading.

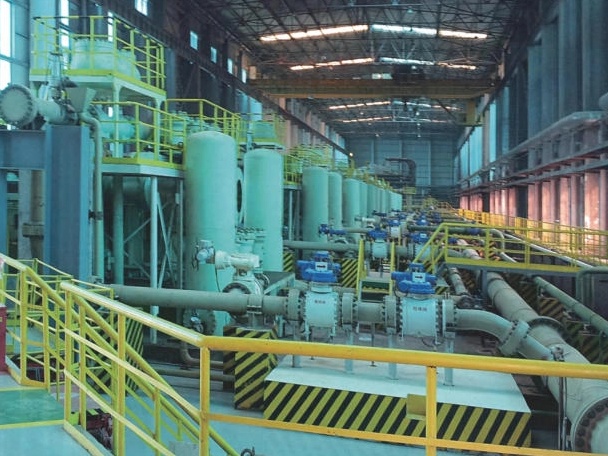

Viscosity and Solids Content: Viscous fluids (e.g., heavy oil, molasses) or slurries with solids (e.g., mining waste, catalyst particles) need valves with large flow paths and wear-resistant trim:
Full-port ball valves or double-offset butterfly valves avoid clogging by providing unobstructed flow.
Valves with tungsten carbide trim resist abrasion from solids, extending service life in slurry systems.
Toxicity and Flammability: Toxic (e.g., hydrogen sulfide) or flammable (e.g., natural gas) media demand valves with tight shut-off performance (ANSI Class VI) to eliminate leaks. For gas systems, use fire-safe valves (compliant with API 607) to maintain sealing integrity during fires.
Temperature Range: Extreme temperatures require valves with materials that retain strength and sealing ability:
Metal-seated valves (e.g., triple-offset butterfly valves) handle high temperatures (up to 800°C) in power plant steam lines.
Cryogenic valves (with low-temperature seals like perfluoroelastomers) are used for liquefied natural gas (LNG) systems (-162°C).
Pressure Rating: Valves must match the system’s operating pressure (and pressure surges). Refer to standards like ANSI/ASME B16.34 to select the right pressure class:
Class 150 valves suit low-pressure systems (e.g., residential water lines, ≤1.9 MPa).
Class 900–2500 valves (e.g., trunnion-mounted ball valves) are for high-pressure applications (e.g., offshore oil pipelines, ≥10 MPa).
The valve’s intended function—whether for on/off control, throttling, or automation—dictates its type, design, and accessories.
On/Off Control: For systems needing quick, full flow activation or shut-off (e.g., pipeline isolation, tank filling), choose valves with fast actuation:
Ball valves (quarter-turn operation, ≤1 second to open/close) or butterfly valves (lightweight, space-saving) are ideal.
Throttling Control: For precise flow/pressure adjustment (e.g., chemical dosing, HVAC temperature regulation), select valves with linear or equal-percentage flow characteristics:
Globe control valves offer ultra-precise throttling (±0.5% accuracy) for critical processes like pharmaceutical manufacturing.
Eccentric rotary plug valves balance throttling performance with resistance to sticky media (e.g., food syrups).
Manual Valves: Suitable for low-frequency operation (e.g., residential faucets, small-scale water lines) and require no external power. Choose valves with ergonomic handles for easy turning.
Automated Valves: For remote control, frequent cycling, or integration with industrial control systems (DCS/PLC), pair valves with actuators:
Pneumatic actuators: Ideal for hazardous areas (explosion-proof) and fast response (e.g., petrochemical process valves).
Electric actuators: Offer precise positioning (via encoders) and compatibility with digital signals (4–20 mA), making them suitable for HVAC and semiconductor systems.
Self-operated actuators: Use media pressure/temperature to drive adjustment (no external power), perfect for remote off-grid systems (e.g., rural water pressure control).
The flow coefficient (Cv) measures a valve’s ability to pass fluid. Calculate the required Cv based on the system’s flow rate, pressure drop, and media density (using formulas like Cv=Q×ρ/ΔP, where Q= flow rate, ρ= media density, ΔP= pressure drop). Select a valve with a Cv value 10–20% higher than the calculated requirement to avoid undersizing (which causes excessive pressure drop) or oversizing (which leads to unstable throttling).
Practical considerations like space constraints, maintenance access, and environmental regulations also influence valve selection.
Size and Dimensions: Ensure the valve’s nominal size (DN) matches the pipeline diameter (e.g., a DN50 valve for a 2-inch pipe). For tight spaces (e.g., wall-mounted HVAC units), choose compact valves like butterfly valves (lower face-to-face dimensions than globe valves).
Connection Type: Match the valve’s end connections to the pipeline (flanged, threaded, welded):
Flanged valves (ANSI/ASME B16.5) for large-diameter, high-pressure systems (e.g., petrochemical pipelines).
Threaded valves (NPT/BSP) for small-scale, low-pressure applications (e.g., residential plumbing).
Welded valves (socket weld/butt weld) for leak-tight, high-temperature systems (e.g., power plant steam lines).
Ease of Maintenance: Valves with split bodies or quick-change trim (e.g., cartridge-style ball valves) reduce downtime for repairs. For hard-to-reach areas (e.g., offshore platforms), choose valves with extended stems or remote maintenance ports.
Service Life Expectancy: Consider the valve’s expected lifespan relative to the system’s design life. For long-term industrial use (10+ years), invest in valves with durable materials (e.g., stainless steel bodies, metal seats) and corrosion-resistant coatings.
Compliance with standards ensures safety and compatibility:
Petrochemicals: Follow API 6D (pipeline valves) and API 598 (testing) for high-pressure, hazardous media.
Food/Pharmaceuticals: Use valves meeting 3-A Sanitary Standards (smooth internal surfaces, FDA-approved materials) to avoid contamination.
Environmental Protection: For volatile organic compounds (VOCs) or wastewater systems, select valves with low fugitive emissions (compliant with EPA Method 21) to meet environmental regulations.
While upfront cost is a factor, focus on total ownership value (initial cost + maintenance + energy costs):
Low-Cost Valves (e.g., brass ball valves): Suitable for non-critical, low-pressure systems (residential use) but may require frequent replacement.
High-Cost Valves (e.g., Hastelloy control valves): Justified for critical processes (e.g., chemical synthesis) where downtime or leaks would be costly.
Energy Efficiency: Choose valves with low pressure drop (e.g., full-port ball valves, butterfly valves) to reduce pump/compressor energy consumption—this saves money over the valve’s lifespan.
In summary, valve selection requires a holistic evaluation of media characteristics, operational needs, installation constraints, and cost. By matching the valve’s material, design, and performance to the system’s requirements, you can ensure reliable, efficient, and safe fluid control. Whether for a small residential plumbing line or a large-scale petrochemical pipeline, careful consideration of these factors is key to selecting the optimal valve and maximizing system performance.If you don't know how to choose a suitable valve for your work,you can contact us by +86-18611864848 or banmy@bjafatech.com.We are glad to serve you.And also you can visit our website:https://www.bjafatech.com to get more information about valves.
