In the oil and petrochemical industry, control valves are the "nerve centers" of fluid control—regulating flows in crude oil distillation, gas processing, and petrochemical synthesis. Given the harsh operating conditions, proper maintenance and service of control valves are critical to avoiding unplanned downtime, safety hazards, and production losses. Unlike general industrial valves, control valves in oil and petrochemical plants require industry-specific care to maintain precision and durability. Below is a practical guide to control valve maintenance, tailored to the needs of oil and petrochemical clients.

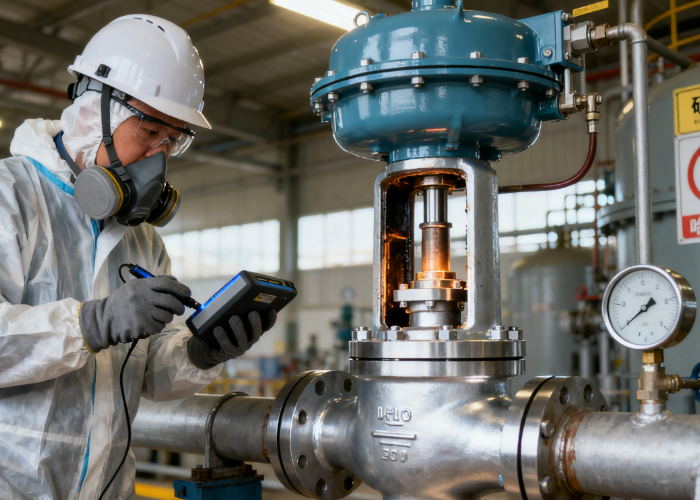

Daily checks are the first line of defense against control valve failures. For oil and petrochemical operations (where even small leaks can escalate), focus on these key tasks:
Check for Leaks: Inspect the control valve’s stem packing (external) and seat (internal) for leaks. External leaks (e.g., oil or gas seepage around the stem) risk fire or toxic exposure (critical for sour gas service), while internal leaks cause pressure drops in pipelines. Use a leak detector (e.g., ultrasonic or gas sniffer) for hard-to-see areas.
Verify Operation Smoothness: Manually test the valve’s opening/closing action (or check actuator feedback) to ensure no sticking. In viscous fluid applications (e.g., heavy crude), sticking may indicate media buildup—address immediately to avoid jamming.
Monitor Actuator Performance: For pneumatic actuators, check air pressure (ensure it matches the valve’s design specs, typically 60–100 psi for oil and petrochemical use); for electric actuators, inspect power connections and indicator lights to avoid signal failures.
Record Data: Log pressure, temperature, and valve position data daily. Sudden changes (e.g., increased pressure drop) can signal early wear, allowing proactive fixes before failures occur.
Preventive maintenance (PM) extends control valve lifespan and ensures consistent performance—critical for oil and petrochemical plants aiming for high operational efficiency. Follow these PM tasks:
Clean the Valve Body: For valves handling abrasive media (e.g., oil sands slurries) or viscous fluids (e.g., asphalt), flush the valve body with a compatible solvent (e.g., diesel for crude oil residues) monthly. Use steam tracing (if installed) to melt hardened deposits before flushing, preventing internal clogs.
Lubricate Moving Parts: Apply high-temperature, corrosion-resistant lubricant (e.g., molybdenum disulfide grease) to the valve stem, actuator gears, and linkages. In offshore oil platforms (high-humidity environments), lubrication prevents rust and reduces friction—key for smooth valve operation.
Calibrate Control Loops: Every quarter, calibrate the control valve with its associated sensor (e.g., flow meter) and controller (PLC/DCS). Use a calibration tool to verify that the valve’s actual position matches the controller’s signal (e.g., 4–20 mA for electric valves). This ensures accurate flow control—essential for processes like reactor feed regulation.
Inspect Seals and Packing: Replace worn stem packing (e.g., PTFE or graphite) quarterly, especially in high-temperature applications (e.g., steam lines). For metal-seated control valves (used in high-pressure gas service), check seat wear with a feeler gauge—replace seats if wear exceeds 0.1 mm to maintain tight sealing.
Annual overhauls are necessary for control valves in critical oil and petrochemical processes (e.g., emergency shutdown systems, ESD). This deep maintenance involves:
Disassemble the Valve: Carefully take apart the control valve (body, valve core，seat, stem, and actuator) in a clean, dust-free area (to avoid contaminating internal parts). Use manufacturer guidelines to avoid damaging precision components (e.g., V-port trims for throttling).
Inspect Internal Components: Check for corrosion, wear, or cracks:
valve core: Replace if there are scratches or erosion (common in valves handling corrosive media like H₂S). Use hardened materials (e.g., tungsten carbide) for replacement in abrasive service.
Seat: Ensure the seat’s sealing surface is smooth. For soft-seated valves (used in low-pressure water service), replace seats if they show compression set or tears.
Actuator: Test pneumatic actuator diaphragms for leaks (submerge in water and check for bubbles) or electric actuator motors for insulation resistance (to prevent short circuits in hazardous areas).
Reassemble and Test: Reinstall components with new gaskets and seals (use API 609-compliant gaskets for oil and petrochemical applications). After reassembly, perform a pressure test (per API 598 standards) to ensure no leaks—pressurize the valve to 1.5 times its maximum operating pressure and hold for 10 minutes.
Oil and petrochemical control valves face unique challenges—tailor maintenance to these scenarios:
Corrosive Media (e.g., Sour Gas): Use corrosion-resistant materials (e.g., Hastelloy stem, duplex stainless steel body) and apply anti-corrosion coatings (e.g., epoxy) annually. Test valve internals for pitting every 6 months—corrosion can weaken components, leading to sudden failures.
High-Temperature Service (e.g., Cracking Units): Inspect thermal expansion of the valve stem and body semi-annually. Use expansion joints (if needed) to absorb heat-induced stress, preventing stem bending. Replace high-temperature seals (e.g., metal gaskets) annually, as heat accelerates seal degradation.
Emergency Shutdown (ESD) Valves: Test ESD control valves monthly (trigger a manual shutdown) to ensure they close fully within the required time (typically <1 second for oil and gas pipelines). Replace backup batteries (for electric ESD valves) every 6 months to avoid failure during power outages.
To maximize control valve performance, follow these industry-specific best practices:
Use OEM Parts: Always replace components (seats, packing, valve core) with original equipment manufacturer (OEM) parts. Generic parts may not withstand oil and petrochemical conditions (e.g., high pressure) and can cause premature failures.
Train Personnel: Ensure maintenance teams are trained on control valve specifics (e.g., actuator types, hazardous area requirements like ATEX certification). In petrochemical plants, untrained staff may damage valves or ignore safety protocols during maintenance.
Align with Industry Standards: Follow API standards (e.g., API 622 for packing, API 608 for ball valves) and ISO 9001 for maintenance quality. Compliance ensures control valves meet oil and petrochemical safety and performance requirements.
For oil and petrochemical companies, proper maintenance and service of control valves are not just cost-saving measures—they are essential for safety, compliance, and operational reliability. By combining daily inspections, regular preventive maintenance, annual overhauls, and scenario-specific care, plants can keep control valves operating at peak performance, minimizing downtime and ensuring smooth production of crude oil, gas, and petrochemicals. A well-maintained control valve not only lasts longer (up to 10+ years) but also reduces the risk of costly accidents—making it a critical investment for any oil and petrochemical operation.You can browse our website:https://www.bjafatech.com to learn more about the maintenance and use of control valves. You can also contact us by phone +86-18611864848 or email banmy@bjafatech.com.
